Seat, Rear: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

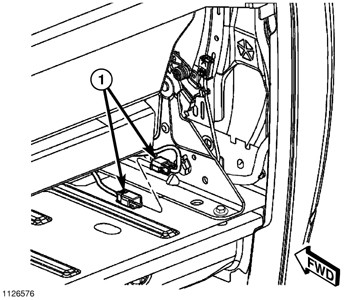

Fig 1: Electrical Connector
GC0089090Courtesy of CHRYSLER LLC
NOTE:

60/40 bench seat shown in illustration, solid bench seat similar.

  1. Disconnect the electrical connector (1), if equipped.

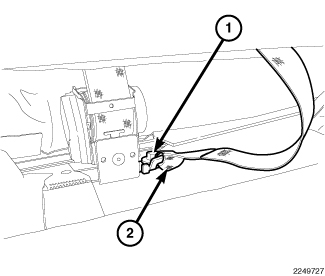

    Fig 2: Center Shoulder Belt
    GC0089091Courtesy of CHRYSLER LLC
  2. Remove the bolt (1) attaching the center holder belt (2) to the retractor and position the holder belt out of the way.
    Fig 3: Rear Inner Belts & Buckles
    GC0089092Courtesy of CHRYSLER LLC
  3. Remove the rear outer bolts.
  4. Remove the rear inner bolts (3) and buckles (2) as necessary.

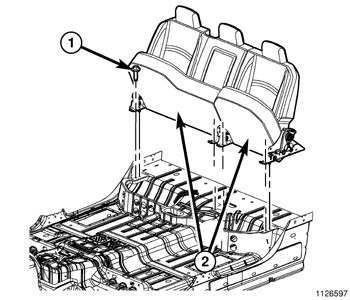

    Fig 4: Front Mounting Bolts
    GC0089093Courtesy of CHRYSLER LLC
  5. Remove the front fasteners (1).

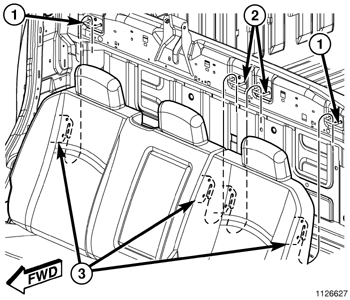

    Fig 5: CAB Hooks
    GC0089094Courtesy of CHRYSLER LLC
  6. Lift the seat assemblies up and separate the cab hooks (3) from the loops (1 and 2).
  7. Remove the seat assembly from the vehicle.
