Driver Side

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

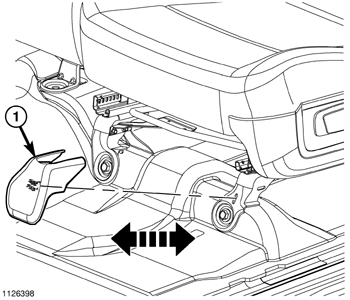

Fig 1: Trim Cover
GC0089068Courtesy of CHRYSLER LLC
  1. Before proceeding with the following repair procedure, review all warnings and cautions. Refer to Seats, Warning .
  2. Remove the trim cover (1).

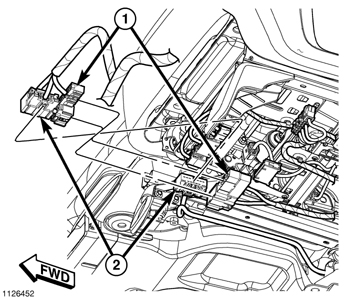

    Fig 2: Electrical Connectors
    GC0089069Courtesy of CHRYSLER LLC
  3. Disconnect the electrical connectors (1) and (2), if equipped.

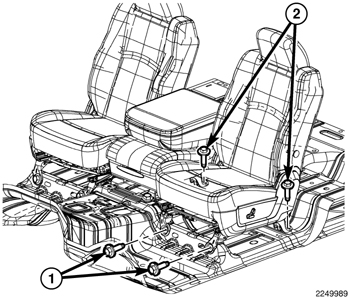

    Fig 3: Mounting Bolts
    GC0089070Courtesy of CHRYSLER LLC
  4. Remove the front mounting bolts (1) from the driver side seat.
  5. Remove the rear bolts (2) and remove the diver seat.
