Center Arm Rest

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

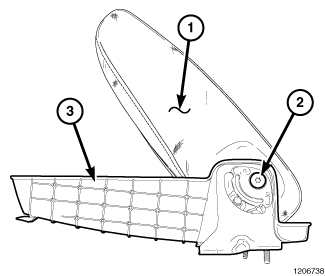

Fig 1: Armrest

Courtesy of CHRYSLER LLC

Remove the pivot bolts (2) and separate the armrest (1) from the tray (3).

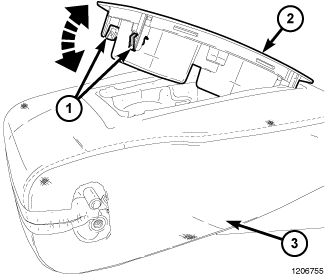

Fig 2: Cup Holder
Courtesy of CHRYSLER LLC
Using trim stick (special tool #C-4755, Trim Stick) or equivalent, disengage the clips (1) and remove the cup holder (2).

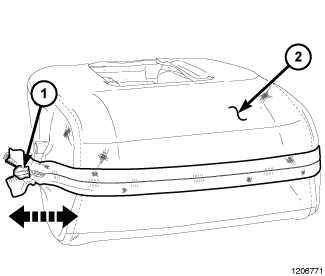

Fig 3: Armrest Foam & Cover
Courtesy of CHRYSLER LLC
Unzip the cover (1) and separate the foam and cover (2) from the armrest frame.
