Latch, Hood: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Hood Latch
GC0089005Courtesy of CHRYSLER LLC
  1. Remove the grille. Refer to GRILLE, Removal .
  2. Using a grease pencil or equivalent, mark the position of the hood latch (1) on the upper radiator crossmember.
  3. Remove the two bolts (3) that secure the hood latch to the upper radiator crossmember.

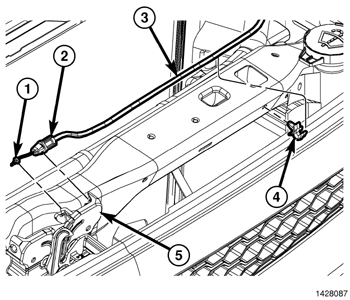

    Fig 2: Hood Release Cable
    GC0089000Courtesy of CHRYSLER LLC
  4. Disconnect the hood latch cable (1) from the hood latch and remove the latch.
