Ram Box Lock Cylinder

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

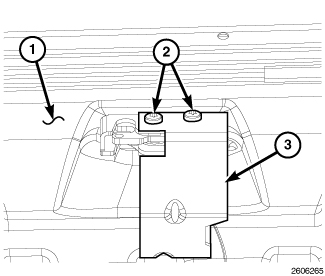

Fig 1: Lock Cylinder Cover

Courtesy of CHRYSLER LLC

Open the Ram Box lid (1).
Remove the two screws (2) that secure the cover (3) to the lid latch.

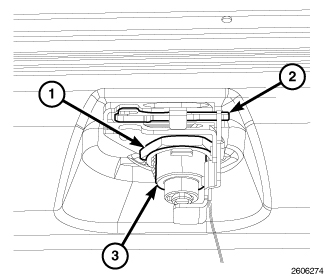

Fig 2: Lock Cylinder
Courtesy of CHRYSLER LLC
Remove the nut (1) that secures the lock cylinder (3) to the lid latch (2).
Push the lock cylinder out through the latch and remove it from the outside of the lid.
