Pickup Box

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

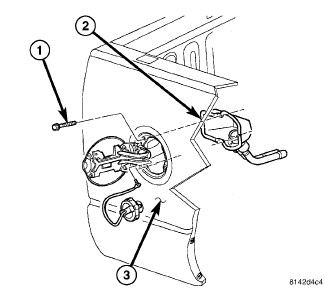

Fig 1: Removing/Installing Fuel Filler

Courtesy of CHRYSLER LLC

NOTE:

Long cargo box shown in illustration. Short cargo box similar.

Disconnect the fuel filler neck from the fuel tank. Refer to TANK, Fuel, Removal or TANK, Fuel, Removal .
Remove the fuel filler from the cargo box and position it out of the way.
If necessary, remove the fuel filler door from the cargo box. Refer to DOOR, Fuel Fill, Removal .

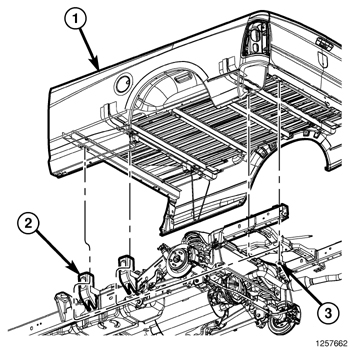

Fig 2: Pickup Box
Courtesy of CHRYSLER LLC
Disconnect the tail lamp wire harness from the underbody wire harness.
If necessary, remove the tail lamp units and wire harness from the cargo box. Refer to LAMP, Tail Stop Turn, Removal .
If necessary, remove the tailgate. Refer to TAILGATE, Removal .
If necessary, remove the rear bumper. Refer to BUMPER, Rear, Removal .
Remove the bolts (3) that secure the cargo box (1) to the frame (2) (six short box, eight long box) and remove the cargo box.
