Windshield Urethane Skip Repair

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

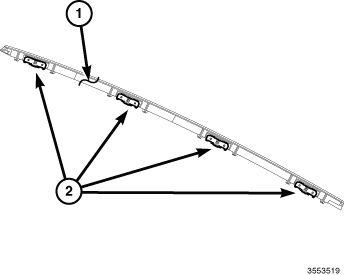

Fig 1: A-Pillar Windshield Molding

Courtesy of CHRYSLER LLC

If the leak is determined to be adjacent to the windshield, then the A-Pillar windshield molding (1) should be removed. The windshield molding can be removed pulling it away from the cab at its four attach points (2). Refer to WEATHERSTRIP, Windshield, A-pillar, Removal .

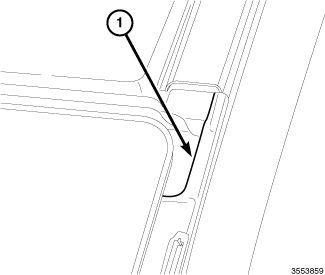

Fig 2: Exposed Body Seam (1)
Courtesy of CHRYSLER LLC

NOTE:
Sealer skips or pinholes can be seen along the exposed body seams (1)

NOTE:
A special area of concern is where the windshield and body seams meet at the upper a-pillar (1), which is shown in illustration.
Once the windshield molding is removed, inspect for sealer skips. Apply Mopar® Glass Sealer to any skip in the urethane around windshield.
For sealer skips in the A-Pillar body seam apply a Clear Hi-Flow Paintable Seam Sealer.
Prior to re-assembly, re-test the area to ensure it is properly sealed.
Carefully reinstall windshield molding. Refer to WEATHERSTRIP, Windshield, A-pillar, Installation .
