Repair Procedure For Sunroof Drain System
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect for water dripping from Overhead Console, also inspect for water marks/stains and/or dampness on Headliner.

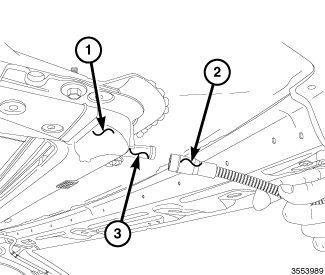

- Lower the headliner. Inspect all four sunroof drain tubes (2) and make certain all connections are secure to each barb (3). Refer to HEADLINER, Removal .
- Verify that all four drain tubes are securely fastened, prior to re-assembly. Re-test the area by opening sunroof and using a small cup of water, slowly pour water into sunroof trough (1) to make certain water flows and the drains are properly sealed.
- Install Headliner. Refer to HEADLINER, Installation .

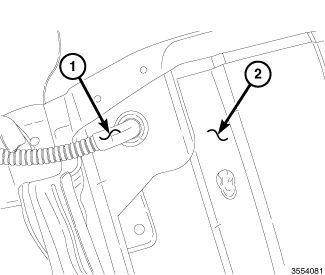

- Inspect both rear sunroof drain tube grommets (1) behind rear seat to make sure they are fully seated into the inner rear cab (2).
