Repair Procedure For Cab-Back Exhauster
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

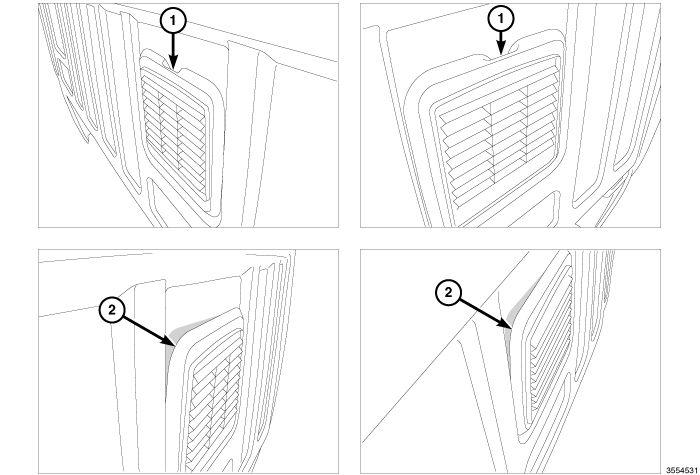

- Review examples below of what to look for and make certain they are properly installed and seated against the body of the vehicle. Example1: Seal folded - Example 2: Exhauster not fully seated
- If any of the conditions are found remove exhauster from vehicle inspect for tearing or ripping of the seal. If seal has no tears or rips then reinstall on to vehicle making sure it clicks in on all four corners and that the seal is not rolled.
- If seal is damaged or torn then replace body exhauster.
