Repair Procedure For CHMSL (3rd Brake Light)

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Parts Required:

Mopar® Glass Sealer

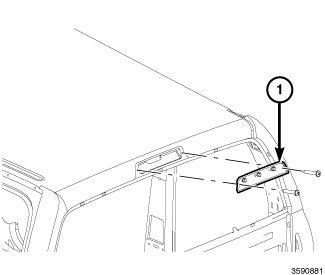

Fig 1: Center High Mounted Stop Lamp Assembly

Courtesy of CHRYSLER LLC

Remove the CHMSL (Center High Mounted Stop Lamp) assembly. Refer to LAMP, Center High Mounted Stop, Removal .

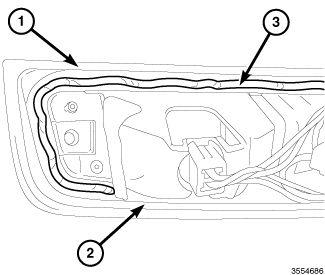

Fig 2: Identifying Bead Of Heavy Bodied Sealer
Courtesy of CHRYSLER LLC
Apply 1/8 inch bead of Heavy Bodied Sealer (3) around the lamp (1) on the foam gasket material (2), leaving no gaps.
Install the CHMSL assembly. Refer to LAMP, Center High Mounted Stop, Installation .
Remove any excess sealer that squeezes out onto the painted surface or exterior lamp assembly.
