Repair Procedure For Aperture/Cab-Back Seams

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

Parts Required:

Paintable Clear Seam Sealer

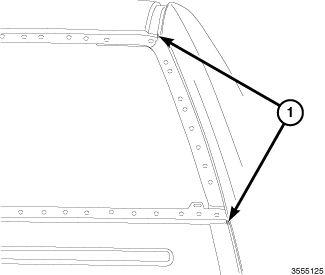

Fig 1: Rat Hole Locations (1)

Courtesy of CHRYSLER LLC

Inspect both areas indicated.
If a skip crack or pinhole is found use Paintable Clear Seam Sealer. Apply sealer as indicated in illustrations below.
NOTE:
It is important to fill the entire seam located within the brackets to be certain of full coverage and proper sealing of the rat hole.

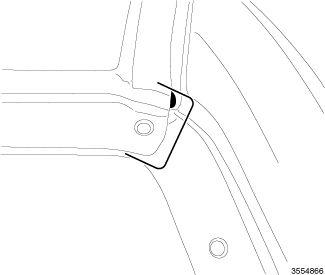

Fig 2: Roof/Aperture Rap Joint
Courtesy of CHRYSLER LLC
Apply clear sealer on entire seam indicated within the bracket.

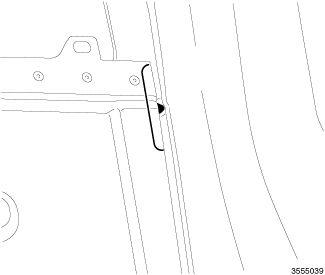

Fig 3: Cab Back/Body Seam
Courtesy of CHRYSLER LLC
Apply clear sealer on entire seam indicated within the bracket.
