STRIKER, Latch: Removal: Removal

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

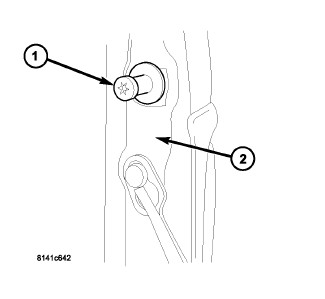

Fig 1: Identifying Tailgate Latch Striker
GC0083735Courtesy of CHRYSLER LLC
  1. Open the tailgate and using a grease pencil or equivalent, mark the location of the tailgate striker (1) being serviced.
  2. Remove the striker from the cargo box (2).
