Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. ACTIVE DTC
    NOTE:

    Diagnose any Misfire DTCs before continuing.

    1. Start the engine and allow it to reach normal operating temperature.
      WARNING:

      When the engine is operating, do not stand in direct line with the fan. Do not put your hands near the pulleys, belts or fan. Do not wear loose clothing. Failure to follow these instructions may result in possible serious or fatal injury.

      NOTE:

      It may be necessary to test drive the vehicle in order for this DTC to set.

    2. With the scan tool, select View DTCs.

      Is the DTC Active at this time?

      Yes

      • Go To  2.

      No

  2. CHECKING PCM CONTROL SIDE FOR THE MDS SOLENOID (C140)

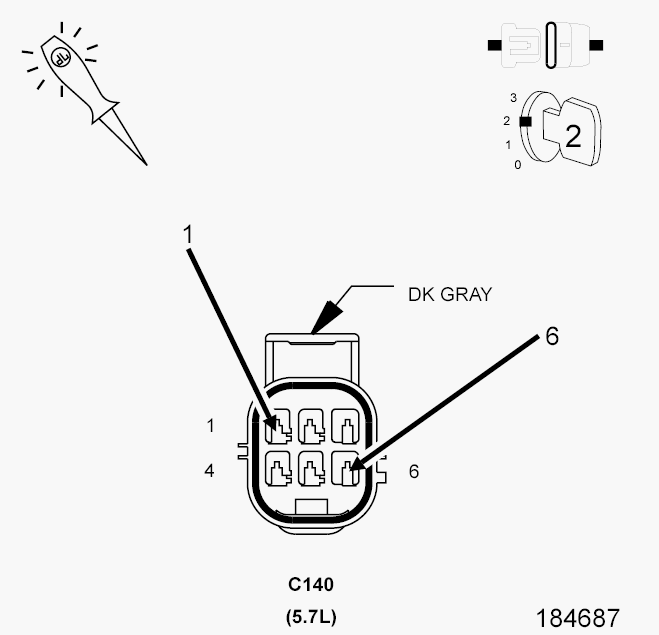

    Fig 1: Using 12-volt Test Light, Jumper From (Z903) Ground Circuit And (K451) MDS Solenoid No. 1 Control Circuit In C140 Harness Connector (Pcm Side)
    GC0091000Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the C140 harness connector.
    3. Using a 12-volt test light, jumper from the (Z903) Ground Circuit and the (K451) MDS Solenoid No. 1 Control Circuit in the C140 harness connector (PCM side).
    4. Turn the ignition on.
    5. With the scan tool, actuate the MDS Solenoid No. 1.
      NOTE:

      The test light should be illuminated and bright proportional to the maximum duty cycle allowed by the scan tool. For example, if the scan tool allows 100% actuation, the brightness should be as bright as a direct connection to the battery. If the scan tool allows a maximum 25% actuation, the brightness should be 25% as bright as a direct connection to the battery.

      Does the test light illuminate accordingly during the actuation?

      Yes

      • Go To  3.

      No

      • Go To  4.
  3. MDS SOLENOID RESISTANCE

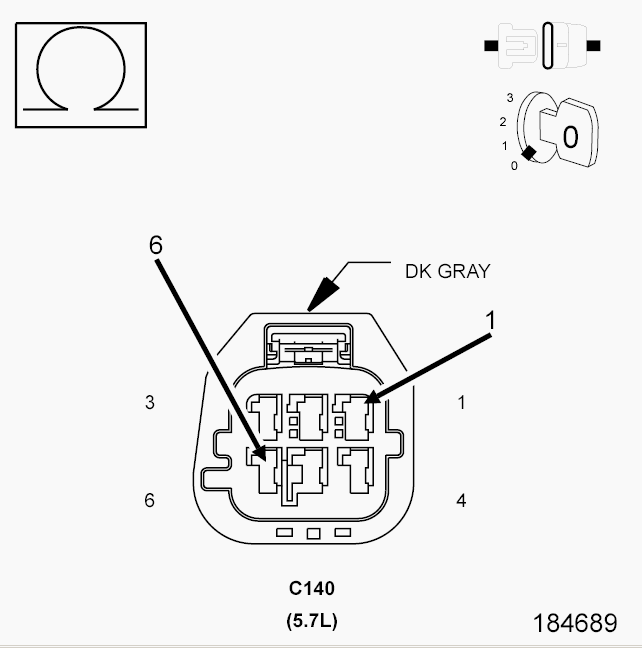

    Fig 2: Measuring Resistance Between (Z903) Ground Circuit And (K451) MDS Solenoid No. 1 Control Circuit In C140 Harness Connector (Mds Side)
    GC0091001Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Measure the resistance between the (Z903) Ground Circuit and the (K451) MDS Solenoid No. 1 Control Circuit in the C140 harness connector (MDS side).
      NOTE:

      It is important to follow the below temp/resistance values to ensure an accurate reading.

      MDS SOLENOID RESISTANCE
      TEMPERATURE VALUE  RESISTANCE - MINIMUM  RESISTANCE - MAXIMUM
      -18° C (0° F) 7.22 ↑© 8.12 ↑©
      0° C (32° F) 7.92 ↑© 8.82 ↑©
      20° C (68° F) 8.72 ↑© 9.62 ↑©
      38° C (100° F) 9.42 ↑© 10.32 ↑©
      66° C (150° F) 10.62 ↑© 11.52 ↑©
      93° C (200° F) 11.82 ↑© 12.72 ↑©
      121° C (250° F) 12.82 ↑© 13.72 ↑©
      149° C (300° F) 14.02 ↑© 14.92 ↑©

      Is the resistance within an acceptable range?

      Yes

      • Go To  7.

      No

      • Visually and Physically inspect the wiring harness between the C140 connector and the MDS Solenoid connector. Repair as necessary. If OK, replace the MDS Solenoid in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  4. (Z903) GROUND CIRCUIT OPEN (PCM SIDE)

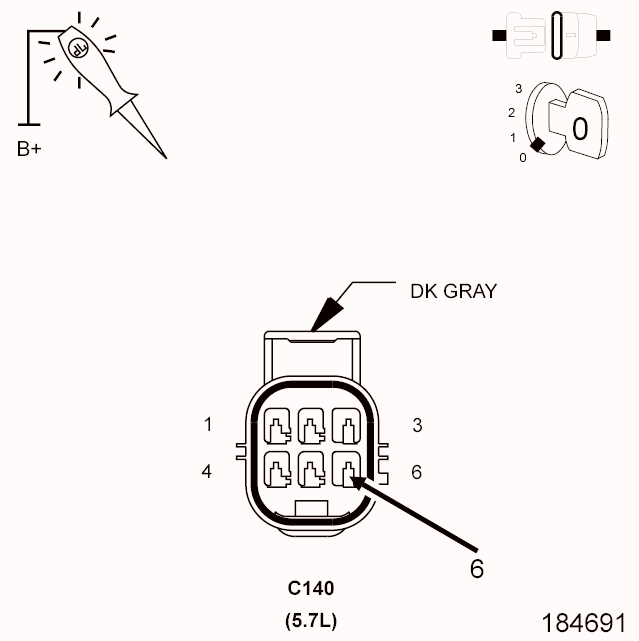

    Fig 3: Using 12-volt Test Light Connected To 12-volts To Probe Ground Circuit In Harness Connector (Pcm Side)
    GC0091002Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Using a 12-volt test light connected to 12-volts, probe the (Z903) Ground circuit in the C140 harness connector (PCM side).

      Does the test light illuminate brightly?

      Yes

      • Go To  5.

      No

  5. (K451) MDS SOLENOID NO. 1 CONTROL CIRCUIT SHORTED TO GROUND (PCM SIDE)

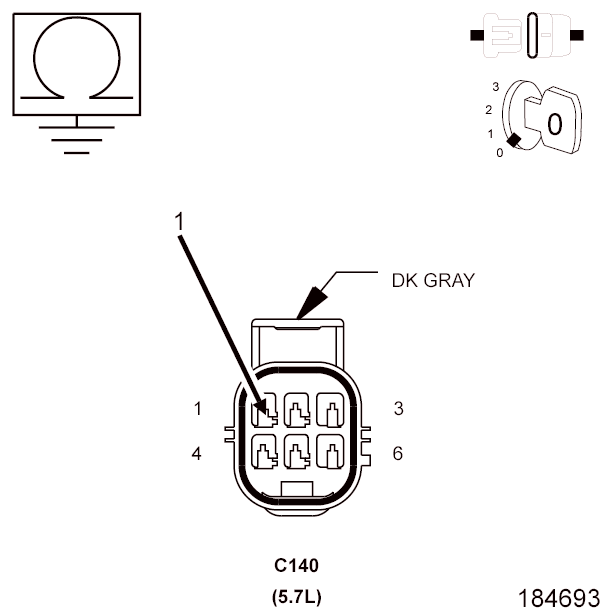

    Fig 4: Measuring Resistance Between Ground And (K451) MDS Solenoid No. 1 Control Circuit In C140 Harness Connector
    GC0091003Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Disconnect the C3 PCM harness connector.
    3. Measure the resistance between ground and the (K451) MDS Solenoid No. 1 Control circuit in the C140 harness connector.

      Is the resistance below 100 Ohms?

      Yes

      • Repair the short to ground in the (K451) MDS Solenoid No. 1 Control circuit between the PCM harness connector and the C140 harness connector.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Go To  6.
  6. (K451) MDS SOLENOID NO. 1 CONTROL CIRCUIT OPEN (PCM SIDE)

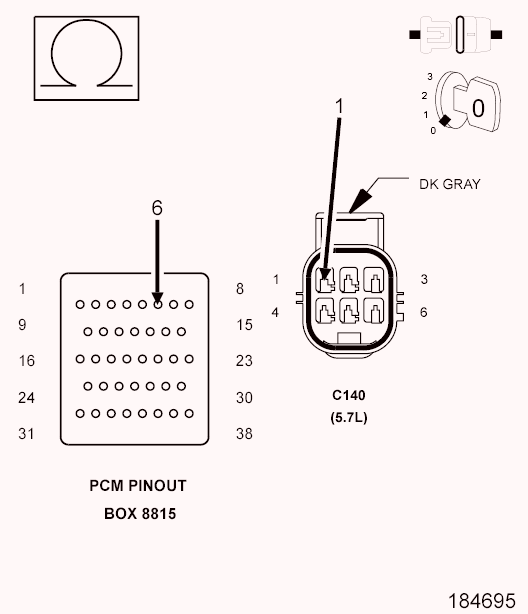

    Fig 5: Measuring Resistance Of (K451) MDS Solenoid No. 1 Control Circuit From C140 Harness Connector To Appropriate Terminal Of PCM Pinout Box 8815
    GC0091004Courtesy of CHRYSLER LLC
    CAUTION:

    Do not probe the PCM harness connectors. Probing the PCM harness connectors will damage the PCM terminals resulting in poor terminal to pin connection. Install the PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position) to perform diagnosis.

    1. Measure the resistance of the (K451) MDS Solenoid No. 1 Control circuit from the C140 harness connector to the appropriate terminal of PCM Pinout Box (special tool #8815A, Kit, NGC, 38 Position).

      Is the resistance below 5.0 Ohms?

      Yes

      • Replace and program the Powertrain Control Module in accordance with the Service Information.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Repair the open in the (K451) MDS Solenoid No. 1 Control circuit between the C140 harness connector and the PCM harness connector.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  7. MDS SOLENOID 1
    Fig 6: View Of MDS Solenoids
    GC0094374Courtesy of CHRYSLER LLC
    1. Turn the ignition off.
    2. Remove the Intake Manifold in accordance with the Service Information.
    3. Turn the ignition on.
      NOTE:

      The DTC needs to be cleared before actuating the Solenoid, if the DTC is not cleared, the Solenoid may not be allowed to actuate.

    4. With the scan tool actuate the MDS Solenoid 1.

      Can you feel and hear the Solenoid Actuating?

      Yes

      • Go To  8.

      No

      • Remove the Solenoid and check for any debris that may be blocking the oil passages to the Solenoid. If the passages are clogged, clean the passages and replace the MDS Solenoid 1. If the passages are not clogged with debris, replace the MDS Solenoid 1.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
  8. OIL PASSAGES RESTRICTED
    1. Turn the ignition off.
    2. Remove both Solenoids on Bank 1 of the engine block.
    3. Remove the Bank 1 Cylinder Head in accordance with the Service Information.
    4. Remove the Lifters from the left engine bank.
    5. Inspect the oil passages to the Solenoids and from the Solenoids to the lifters.

      Are the passages blocked?

      Yes

      • Clean the oil passages as necessary. If the entire engine is restricted, disassembly of the entire engine block may be necessary.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .

      No

      • Replace both sets of lifters if no other possible causes remain.
      • Perform the POWERTRAIN VERIFICATION TEST. Refer to POWERTRAIN VERIFICATION TEST .
