Module, Vehicle System Interface: Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect and isolate the negative battery cable.

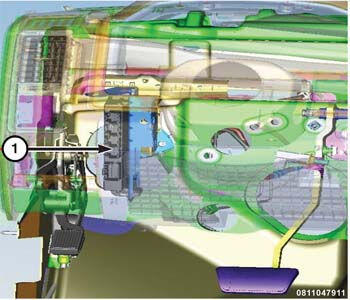

    Fig 1: Vehicle System Interface Module (VSIM) Location
    GC0162899Courtesy of CHRYSLER GROUP, LLC
  2. Remove the kneeblocker to access the Vehicle System Interface Module (VSIM).
    Fig 2: Vehicle System Interface Module (VSIM) Connectors Location
    GC0162901Courtesy of CHRYSLER GROUP, LLC
  3. Disconnect all wiring harness connectors from the VSIM.
  4. Press the release tab on the VSIM bracket and pull the module out.
