Sensor, Oxygen: Removal: Removal
WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect and isolate the negative battery cable.
- Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .
- Remove the right front tire and wheel assembly.
- Remove the right front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
- Detach the oxygen sensor wire harness connector from bracket.
- Disconnect the oxygen sensor wire harness connector (1).
- Remove the oxygen sensor wire harness from the routing C-clip.

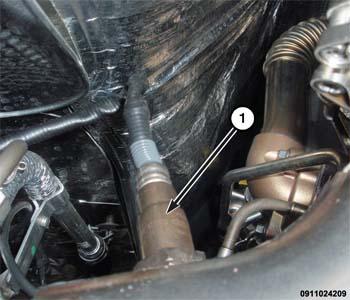

- Remove the oxygen sensor (1).
