Adapter, Oil Cooler: Installation: Installation

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

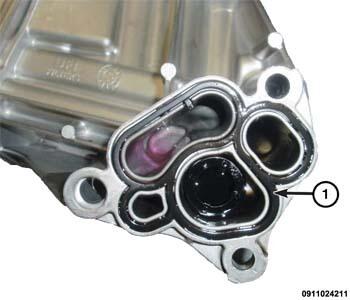

Fig 1: O-Ring Seal

Courtesy of CHRYSLER GROUP, LLC

Clean the gasket sealing surfaces. Refer to ENGINE - STANDARD PROCEDURE .
Install a NEW O-ring seal (1).

Fig 2: Remove/Install Oil Cooler Assembly
Courtesy of CHRYSLER GROUP, LLC
Install the oil filter housing (2). Tighten the bolts (1, 3) to 30 N.m (22 ft. lbs.).

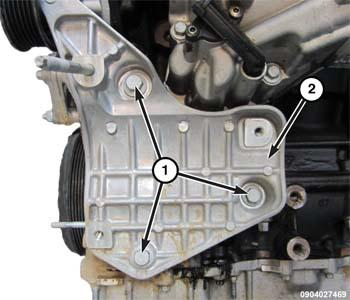

Fig 3: A/C Compressor Bracket & Bolts
Courtesy of CHRYSLER GROUP, LLC
Install the A/C compressor bracket (2). Tighten the bolts (1) 45 N.m (33 ft. lbs.).

Fig 4: Identifying Wire Harness Connector, Bolts & A/C Compressor
Courtesy of CHRYSLER GROUP, LLC
Install the A/C compressor. Refer to COMPRESSOR, A/C, INSTALLATION .

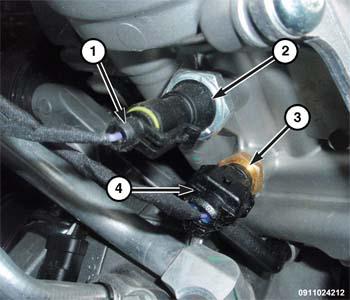

Fig 5: Oil Temperature Sensor Wire Harness Connector & Oil Pressure Sensor Wire Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Connect the oil pressure sensor wire harness connector (4).
Connect the oil temperature sensor wire harness connector (1).

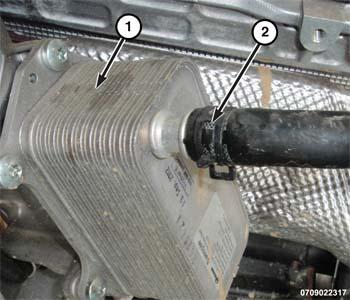

Fig 6: Oil Cooler & Coolant Hose
Courtesy of CHRYSLER GROUP, LLC
Connect the coolant hose (2) from oil cooler (1).
Fill the cooling system. Refer to STANDARD PROCEDURE .
Change the oil filter and fill the engine with recommended engine oil. Refer to CAPACITIES AND RECOMMENDED FLUIDS, SPECIFICATIONS .
Connect the negative battery cable.
Start the engine and check for leaks.

Fig 7: Removing/Installing Engine Cover
Courtesy of CHRYSLER GROUP, LLC
Install the engine cover (1).
