Body, Air Cleaner: Removal: Removal: Notes

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

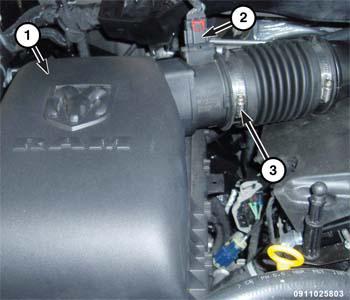

Fig 1: Air Cleaner Body, Mass Air Flow (MAF) Sensor Harness Connectors & Screw Clamp
GC0158193Courtesy of CHRYSLER GROUP, LLC
  1. Disconnect and isolate the negative battery cable.
  2. Disconnect the Mass Air Flow (MAF) sensor harness connectors (2).
  3. Loosen the clamp (3) and remove the air outlet tube from the MAF sensor.
  4. Pulling upward, remove the air cleaner body (1).
