Hydraulic Control Unit (HCU): Removal: Removal

WARNING: This page is about a different car, the 2015 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the battery cables from the battery.
Using a brake pedal holder, depress the brake pedal past its first one inch of travel and hold it in this position. This will isolate the master cylinder from the brake hydraulic system and will not allow the brake fluid to drain out of the master cylinder reservoir.

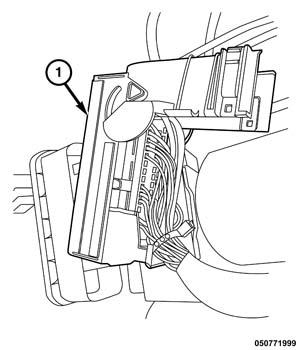

Fig 1: Electrical Harness Connector
Courtesy of CHRYSLER GROUP, LLC
Disconnect the (1) electrical harness connector.

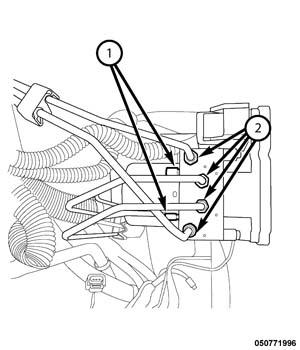

Fig 2: Removing Brake Lines From HCU
Courtesy of CHRYSLER GROUP, LLC
Remove the brake lines (1) and (2) from the HCU and cap brake lines.

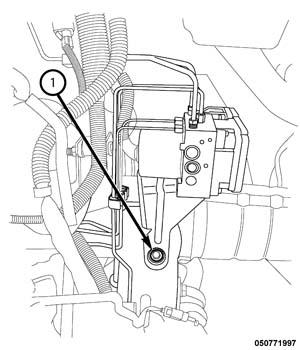

Fig 3: HCU/ABM Bracket Inner Mounting Fastener
Courtesy of CHRYSLER GROUP, LLC
Remove HCU/ABM bracket inner mounting fastener.

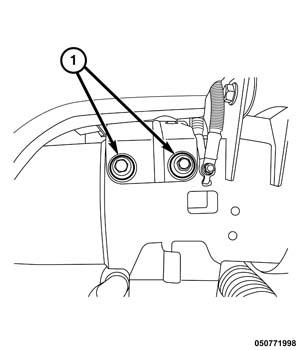

Fig 4: HCU/ABM Bracket Outer Mounting Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove HCU/ABM bracket outer mounting fasteners (1) and remove the HCU/ABM assembly from the frame.
Remove the HCU bracket fasteners and separate the HCU/ABM from the HCU bracket.
