Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

INSPECT SEAT TRACK, MOTOR, AND HARNESS
1. Verify seat harness is routed correctly.
2. Inspect seat track and motor for damage.
3. Inspect for anything that would prevent the seat from moving to each end-stop.
  Is anything present that would prevent the seat from moving to each end-stop?

  Yes
  - Repair as necessary.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Go To 2.
CHECK FOR SEAT POSITION SENSOR DIAGNOSTIC TROUBLE CODES (DTCs)
1. Turn the ignition on.
2. Using a scan tool, read DTCs.
  Does the scan tool display any seat position sensor DTCs?

  Yes
  - Diagnose and repair all seat position sensor DTCs. Refer to Diagnosis and Testing .
  No
  - Go To 3.
TEST FOR INTERMITTENT CONDITION
1. Using a scan tool, record and erase DTCs.
2. Move the seat switch in one front vertical adjustment direction for at least one second then release the switch. Repeat three times consecutively, but move the switch in the opposite direction each time.
3. Using a scan tool, read DTCs.
  Does the scan tool display DTC B1D7F-SEAT FRONT VERTICAL MOTOR CONTROL CIRCUIT PERFORMANCE?

  Yes
  - Go To 4.
  No
  - The conditions that caused this code to set are not present at this time. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT AND THE (G494) DRIVER SEAT FRONT VERTICAL SENSOR GROUND CIRCUIT FUNCTION

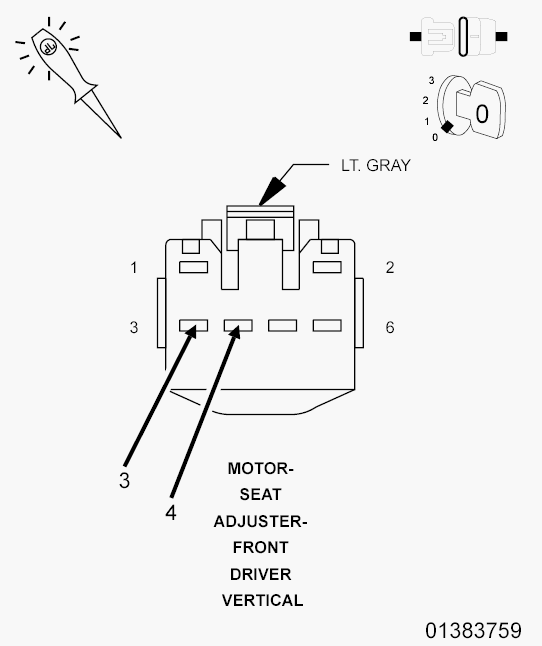

Fig 1: Checking Driver Seat Front Vertical Position Sense Circuit Function
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Front Driver Vertical Seat Adjuster Motor connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
3. Disconnect the scan tool.
4. Turn off all vehicle interior and exterior lighting.
5. Mark sure all doors are closed then wait 10 seconds.
6. Connect a 12-Volt test light between the (G404) Driver Seat Front Vertical Position Sense circuit and the (G494) Driver Seat Front Vertical Sensor Ground circuit at the Driver Front Vertical Seat Adjuster Motor connector.
7. Move the seat switch in the front vertical adjust position then release the switch.
  Does the test light illuminate for approximately five seconds then turn off?

  Yes
  - Go To 5.
  No
  - Go To 9.
CHECK THE (P119) DRIVER SEAT FRONT VERTICAL UP DRIVER CIRCUIT THE (P121) DRIVER SEAT FRONT VERTICAL DOWN DRIVER CIRCUIT FUNCTION

Fig 2: Checking Driver Seat Front Vertical Up Driver Circuit Function
Courtesy of CHRYSLER LLC
1. Connect a 12-Volt test light between the (P119) Driver Seat Front Vertical Up Driver circuit and the (P121) Driver Seat Front Vertical Down Driver circuit at the Front Driver Vertical Seat Adjuster Motor connector.
2. Move the seat switch in the front vertical adjust position.
  Does the test light illuminate with the seat switch engaged?

  Yes
  - Go To 6.
  No
  - Go To 11.
CHECK THE FRONT DRIVER VERTICAL SEAT ADJUSTER MOTOR OPERATION

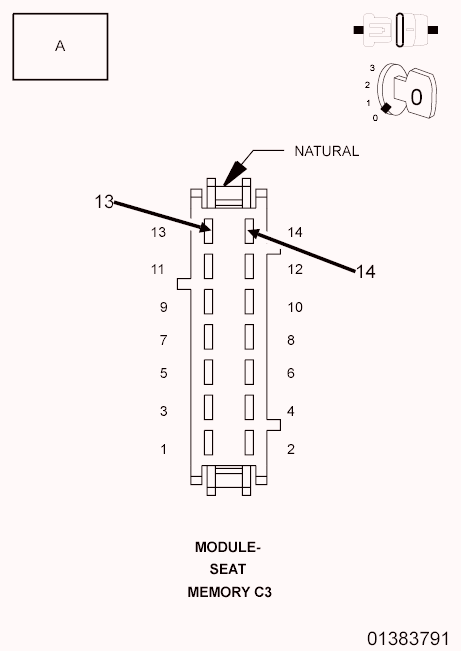

Fig 3: Checking Front Driver Vertical Seat Adjuster Motor Operation
Courtesy of CHRYSLER LLC
1. Reconnect the Front Driver Vertical Seat Adjuster Motor connector.
2. Disconnect the MSM C3 connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
3. Check motor operation in both directions as follows:
  NOTE:
  Do not adjust the seat against an end-stop when performing the following.

  To drive seat upward:
  - Connect one end of a fused jumper wire to battery Voltage and the other end to the (P119) Driver Seat Front Vertical Up Driver circuit at the MSM C3 connector.
  - Connect an ammeter between ground and the (P121) Driver Seat Front Vertical Down Driver circuit at the MSM C3 connector.
  - Disconnect before reaching the end-stop.
  To drive seat downward:
  - Connect one end of a fused jumper wire to battery Voltage and the other end to the (P121) Driver Seat Front Vertical Down Driver circuit at the MSM C3 connector.
  - Connect an ammeter between ground and the (P119) Driver Seat Front Vertical Up Driver circuit at the MSM C3 connector.
  - Disconnect before reaching the end-stop.
  NOTE:
  The seat motor should be operational in both directions and the ammeter should read approximately 2.5 amps in the upward direction and 3.5 amps in the downward direction.

  Does the motor operate as specified?

  Yes
  - Go To 7.
  No
  - Check (P119) Driver Seat Front Vertical Up Driver circuit and (P121) Driver Seat Front Vertical Down Driver circuit for high resistance. If circuits are okay, replace the Front Driver Vertical Seat Adjuster motor assembly in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE FRONT DRIVER VERTICAL SEAT ADJUSTER MOTOR SENSOR OPERATION

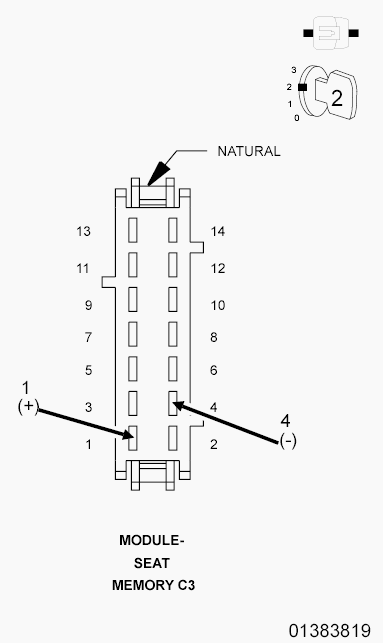

Fig 4: Checking Front Driver Vertical Seat Adjuster Motor Sensor Operation
Courtesy of CHRYSLER LLC
1. Reconnect the MSM C3 connector.
2. Turn the ignition on.
3. Using a scan tool, erase DTCs.
4. Connect the positive lead of a lab scope to the (G404) Driver Seat Front Vertical Position Sense circuit and the negative lead to the (G494) Driver Seat Front Vertical Sensor Ground circuit at the MSM C3 connector. Set the lab scope range to 20 Volts and time to 20 ms divisions.
  NOTE:
  Do not adjust the seat against an end-stop when performing the following.
5. Move the seat switch in one front vertical adjust position.
  NOTE:
  If the sensor is functioning normally the scope will display a continuously cycling square wave when operating the seat. If the module fails to detect sensor operation it will stop seat operation in approximately two seconds.

  Does the sensor operate as specified?

  Yes
  - Leave Scope Connected. Go To 8.
  No
  - Replace the Front Driver Vertical Seat Adjuster motor assembly in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE FRONT DRIVER VERTICAL SEAT ADJUSTER MOTOR SENSOR OPERATION IN OPPOSITE DIRECTION

Fig 5: Checking Front Driver Vertical Seat Adjuster Motor Sensor Operation
Courtesy of CHRYSLER LLC
1. Using a scan tool, erase DTCs if present.
  NOTE:
  Do not adjust the seat against an end-stop when performing the following.
2. Move the seat switch in the direction opposite of that previously selected.
  NOTE:
  If the sensor is functioning normally the scope will display a continuously cycling square wave when operating the seat. If the module fails to detect sensor operation it will stop seat operation in approximately two seconds.

  Does the sensor operate as specified?

  Yes
  - Replace the Memory Seat Module (MSM) in accordance with the Service Information.
  - Perform APS VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Replace the Front Driver Vertical Seat Adjuster motor assembly in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT FOR AN OPEN

Fig 6: Checking Driver Seat Front Vertical Position Sense Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect the MSM C3 connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
2. Measure the resistance of the (G404) Driver Seat Front Vertical Position Sense circuit between the Front Driver Vertical Seat Adjuster Motor connector and the MSM C3 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 10.
  No
  - Repair the (G404) Driver Seat Front Vertical Position Sense circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE (G494) DRIVER SEAT FRONT VERTICAL SENSOR GROUND CIRCUIT FOR AN OPEN

Fig 7: Checking Driver Seat Front Vertical Sensor Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G494) Driver Seat Front Vertical Sensor Ground circuit between the Driver Front Vertical Seat Adjuster Motor connector and the MSM C3 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Memory Seat Module (MSM) in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Repair the (G494) Driver Seat Front Vertical Senor Ground circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE (P119) DRIVER SEAT FRONT VERTICAL UP DRIVER CIRCUIT FOR AN OPEN

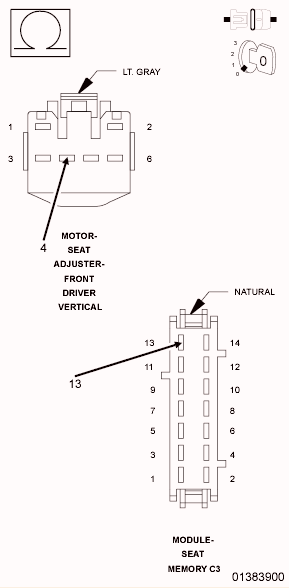

Fig 8: Checking Driver Seat Front Vertical Up Driver Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect the MSM C3 connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
2. Measure the resistance of the (P119) Driver Seat Front Vertical Up Driver circuit between the Driver Front Vertical Seat Adjuster Motor connector and the MSM C3 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 12.
  No
  - Repair the (P119) Driver Seat Front Vertical Up Driver circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE (P121) DRIVER SEAT FRONT VERTICAL DOWN DRIVER CIRCUIT FOR AN OPEN

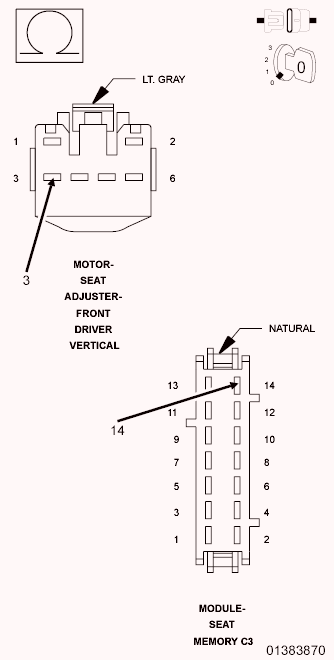

Fig 9: Checking Driver Seat Front Vertical Down Driver Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (P121) Driver Seat Front Vertical Down Driver circuit between the Driver Front Vertical Seat Adjuster Motor connector and the MSM C3 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Memory Seat Module (MSM) in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Repair the (P121) Driver Seat Front Vertical Down Driver circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
