TEST FOR INTERMITTENT CONDITION
1. Turn the ignition on.
2. Using a scan tool, record and erase Diagnostic Trouble Codes (DTCs).
3. Move the seat switch in the front vertical adjust position three times.
4. Using a scan tool, read DTCs.
  Does the scan tool display DTC B1D72-SEAT FRONT VERTICAL POSITION SENSOR CIRCUIT HIGH?

  Yes
  - Go To 2.
  No
  - The conditions that caused this code to set are not present at this time. Verify seat harness is routed correctly. Using the wiring diagram/schematic as a guide, inspect the wiring and connectors. Look for chafed, pierced, pinched, or partially broken wires and broken, bent, pushed out, spread, corroded, or contaminated terminals.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT FOR A SHORT TO VOLTAGE

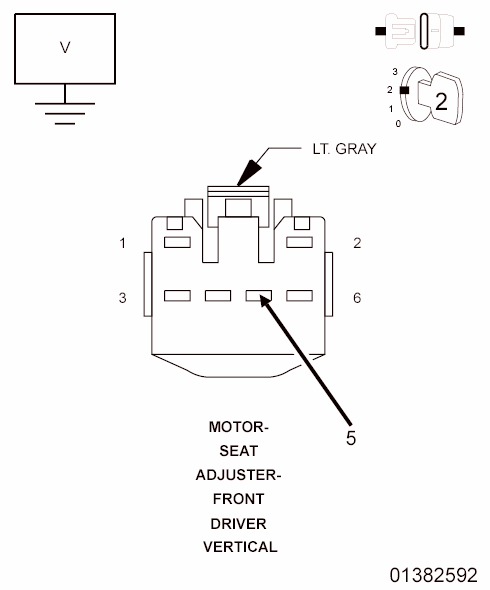

Fig 1: Checking Driver Seat Front Vertical Position Sense Circuit For Short
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the Front Driver Vertical Seat Adjuster Motor connector.
3. Disconnect the MSM C3 connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
4. Turn the ignition on.
5. Measure the Voltage of the (G404) Driver Seat Front Vertical Position Sense circuit between the Driver Horizontal Seat Adjuster Motor connector and ground.
  Is there any Voltage present?

  Yes
  - Repair the (G404) Driver Seat Front Vertical Position Sense circuit for a short to Voltage.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Go To 3.
CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT AND THE (G494) DRIVER SEAT FRONT VERTICAL SENSOR GROUND CIRCUIT FUNCTION

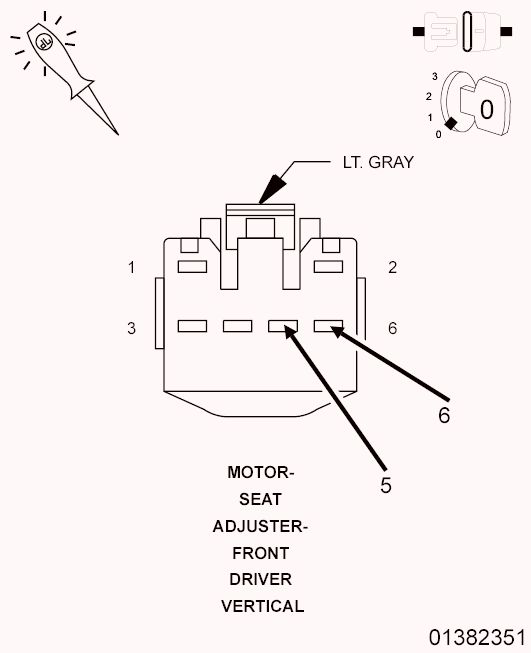

Fig 2: Checking Driver Seat Front Vertical Position Sense Circuit Function
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Reconnect the MSM C3 connector.
3. Disconnect the scan tool.
4. Turn off all vehicle interior and exterior lighting.
5. Mark sure all doors are closed then wait 10 seconds.
6. Connect a 12-Volt test light between the (G404) Driver Seat Front Vertical Position Sense circuit and the (G494) Driver Seat Front Vertical Sensor Ground circuit at the Driver Front Vertical Seat Adjuster Motor connector.
7. Move the seat switch in the front vertical adjust position then release the switch.
  Does the test light illuminate for approximately five seconds then turn off?

  Yes
  - Replace the Front Driver Vertical Seat Adjuster Motor Assembly in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Go To 4.
CHECK THE (G404) DRIVER SEAT FRONT VERTICAL POSITION SENSE CIRCUIT FOR AN OPEN

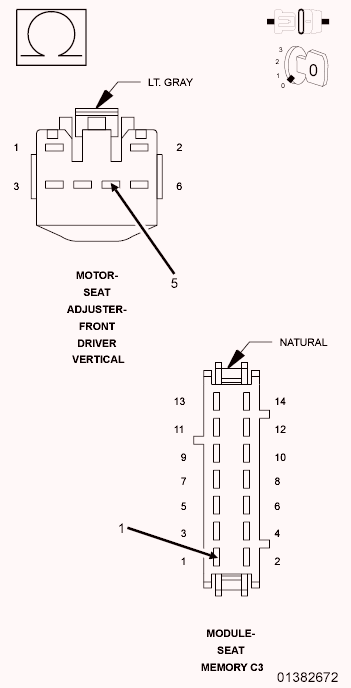

Fig 3: Checking Driver Seat Front Vertical Position Sense Circuit For Open
Courtesy of CHRYSLER LLC
1. Disconnect the MSM C3 connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
2. Measure the resistance of the (G404) Driver Seat Front Vertical Position Sense circuit between the Front Driver Vertical Seat Adjuster Motor connector and the MSM C3 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Go To 5.
  No
  - Repair the (G404) Driver Seat Front Vertical Position Sense circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
CHECK THE (G494) DRIVER SEAT FRONT VERTICAL SENSOR GROUND CIRCUIT FOR AN OPEN

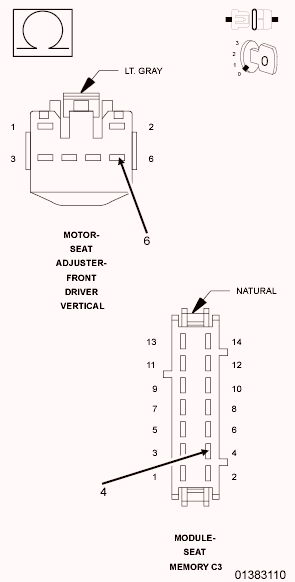

Fig 4: Checking Driver Seat Front Vertical Sensor Ground Circuit For Open
Courtesy of CHRYSLER LLC
1. Measure the resistance of the (G494) Driver Seat Front Vertical Sensor Ground circuit between the Driver Front Vertical Seat Adjuster Motor connector and the MSM C3 connector.
  Is the resistance below 5.0 Ohms?

  Yes
  - Replace the Memory Seat Module (MSM) in accordance with the Service Information.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Repair the (G494) Driver Seat Front Vertical Senor Ground circuit for an open.
  - Perform POWER SEAT SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
