Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

CHECK FOR ACTIVE FAULT WITH PEDALS STATIONARY
1. Turn the ignition on.
2. Using a scan tool, record and erase DTCs.
3. Cycle the ignition from on to off.
4. Turn the ignition on.
5. Using a scan tool, read DTCs.
  Does the scan tool display DTC B1D56-ADJUSTABLE PEDAL SENSOR CIRCUIT LOW?

  Yes
  - Go To 3.
  No
  - Go To 2.
CHECK FOR ACTIVE FAULT WHILE ADJUSTING THE PEDALS
1. Operate the Adjustable Pedals switch in both positions then wait five seconds.
2. Using a scan tool, read DTCs.
  Does the scan tool display DTC B1D56-ADJUSTABLE PEDAL SENSOR CIRCUIT LOW?

  Yes
  - Go To 3.
  No
  - The conditions that caused this code to set are not present at this time. Perform the APS INTERMITTENT CONDITION TEST. Refer to Standard Procedure .
CHECK THE (G13) ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT FOR A SHORT TO GROUND

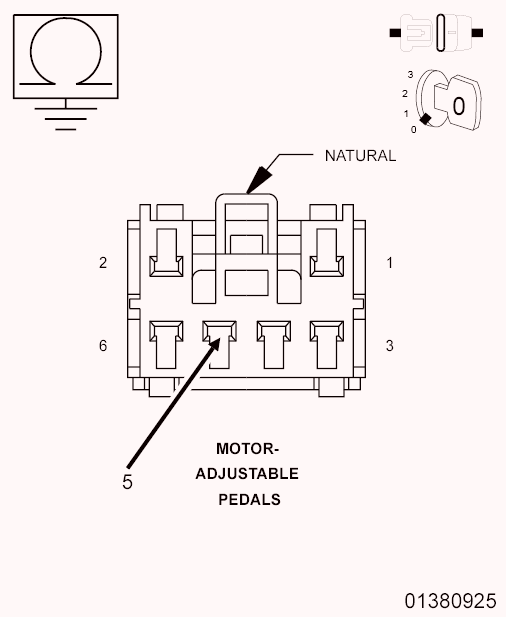

Fig 1: Checking Adjustable Pedals Sensor Supply Circuit For A Short To Ground
Courtesy of CHRYSLER LLC
1. Turn the ignition off.
2. Disconnect the MSM C2 harness connector.
3. Disconnect the Adjustable Pedals Motor harness connector.
  NOTE:
  Check connectors. Clean and repair as necessary.
4. Measure the resistance of the (G13) Adjustable Pedals Sensor Supply circuit between ground and the Adjustable Pedals Motor harness connector.
  Is the resistance below 10K Ohms?

  Yes
  - Repair the (G13) Adjustable Pedals Sensor Supply circuit for a short to ground.
  - Perform APS VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Go To 4.
CHECK THE (G13) ADJUSTABLE PEDALS SENSOR SUPPLY CIRCUIT FOR A SHORT TO THE (G493) POSITION SENSOR GROUND CIRCUIT, THE (P205) ADJUSTABLE PEDALS MOTOR FORWARD CIRCUIT, OR THE (P206) ADJUSTABLE PEDALS MOTOR REARWARD CIRCUIT

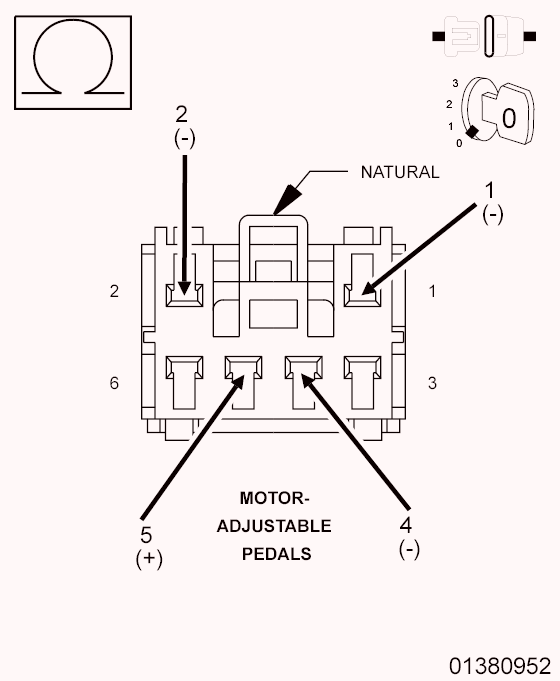

Fig 2: Measuring Resistance Of Adjustable Pedals Sensor Supply Circuit
Courtesy of CHRYSLER LLC
1. Measure the resistance between the (G13) Adjustable Pedals Sensor Supply circuit and the (G493) Position Sensor Ground circuit at the Adjustable Pedals Motor harness connector.
2. Measure the resistance between the (G13) Adjustable Pedals Sensor Supply circuit and the (P205) Adjustable Pedals Motor Forward circuit at the Adjustable Pedals Motor harness connector.
3. Measure the resistance between the (G13) Adjustable Pedals Sensor Supply circuit and the (P206) Adjustable Pedals Motor Rearward circuit at the Adjustable Pedals Motor harness connector.
  Is the resistance below 10K Ohms for any measurement?

  Yes
  - Repair all circuits with a resistance below 10K Ohms for a short to the (G13) Adjustable Pedals Sensor Supply circuit.
  - Perform the APS VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Go To 5.
CHECK THE (G13) ADJUSTABLE PEDALS SENSOR SUPPLY AND (G493) POSITION SENSOR GROUND CIRCUIT FUNCTION

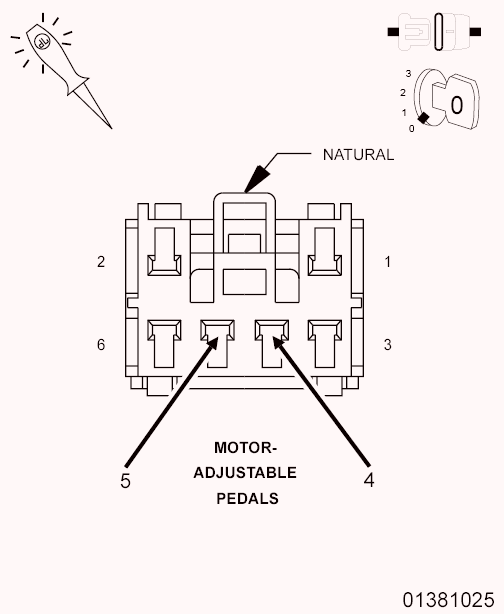

Fig 3: Checking Adjustable Pedals Sensor Supply & Position Sensor Ground Circuit
Courtesy of CHRYSLER LLC
1. Reconnect the MSM C2 harness connector.
2. Disconnect the scan tool.
3. Turn off all vehicle interior and exterior lighting.
4. Mark sure all doors are closed then wait 10 seconds.
5. Connect a 12-Volt test light between the (G13) Adjustable Pedals Sensor Supply circuit and the (G493) Position Sensor Ground circuit at the Adjustable Pedals Motor harness connector.
6. While monitoring the test light, press the Adjustable Pedals switch in either direction then release the switch.
  Does the test light illuminate for approximately six seconds then turn off?

  Yes
  - Replace the Adjustable Pedals Sensor in accordance with the Service Information.
  - Perform the APS VERIFICATION TEST. Refer to Standard Procedure .
  No
  - Replace the Memory Seat Module (MSM) in accordance with the Service Information.
  - Perform the APS VERIFICATION TEST. Refer to Standard Procedure .
