SENSOR, Wheel Speed, Rear: Removal: 1500

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

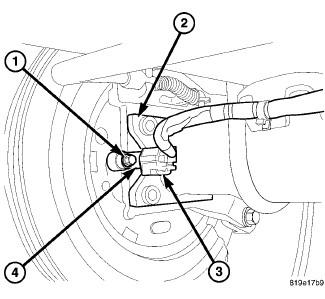

Fig 1: Identifying Wheel Speed Sensor, Bolt, Adapter, And Electrical Connector
GC0083404Courtesy of CHRYSLER LLC
  1. Raise and support the vehicle. Refer to Hoisting , Standard Procedure .
  2. Disconnect the wheel speed sensor electrical connector (3).
  3. Remove the mounting bolt (1) from the sensor (4).
  4. Remove the sensor (4) from the brake caliper adapter.
