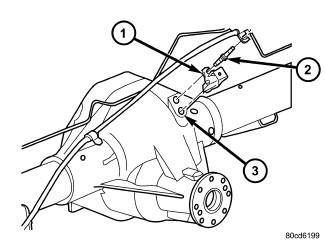

| 1 - WHEEL SPEED SENSOR |
| 2 - MOUNTING STUD |
| 3 - AXLE HOUSING |
- Connect the harness to the sensor. Be sure the seal is securely in place between the sensor and the wiring connector.
- Install the O-ring on the sensor (if removed).
- Insert the sensor (1) in the differential housing (3).
- Install the sensor shield.
- Install the sensor mounting stud (2) and tighten to 24 N.m (200 in. lbs.).
- Install the brake line on the sensor stud (2) and install the nut.
- Remove the support and lower the vehicle.
