Sensor, Accelerator Pedal Position: Description: Description
WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of CHRYSLER GROUP, LLC

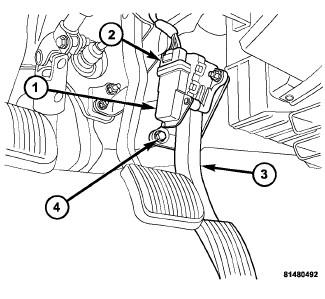

| 1 - APPS |
| 2 - APPS 6-Way Electrical Connector |
| 3 - Accelerator Pedal |
| 4 - Mounting Bolts/Nuts |
The Accelerator Pedal Position Sensor (APPS) (1) is located inside the vehicle. It is attached to the accelerator pedal assembly (3).
