Tube, Fuel Tank Filler: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

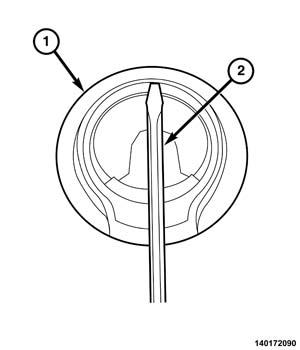

Fig 1: Removing Capless Fuel Filler Locking Tab Cover

Courtesy of CHRYSLER GROUP, LLC

Using a flat blade screwdriver, remove the cap less fuel filler locking tab cover (1) by prying the cover upwards and away from the support plate.

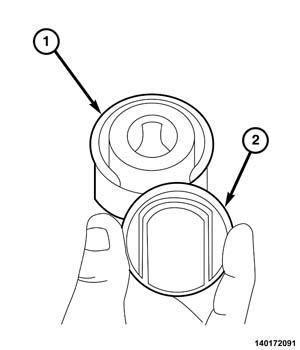

Fig 2: Remove/Install Support Plate
Courtesy of CHRYSLER GROUP, LLC
Remove the support plate (2).
NOTE:
Illustration shown without the filler tube, to show the tab locations.

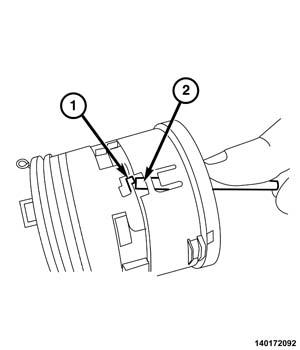

Fig 3: Removing Upper Locknut Housing
Courtesy of CHRYSLER GROUP, LLC
Insert two pocket screw drivers (2) in the side guide slots.
Push down on the locking tabs (1) enough to clear the upper lockout housing.

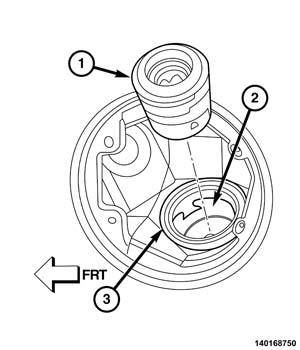

Fig 4: Remove/Install Lockout Housing
Courtesy of CHRYSLER GROUP, LLC
Twist the outer Lockout housing (1) counter clockwise and remove from the filler tube (3).
Raise the vehicle.

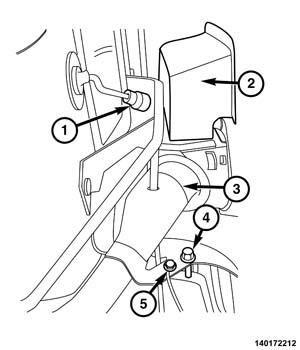

Fig 5: Ground Wire, Filler Neck & Fasteners
Courtesy of CHRYSLER GROUP, LLC
Remove the ground wire (5).
Remove the filler neck (3) to filler support bracket bolt (4).

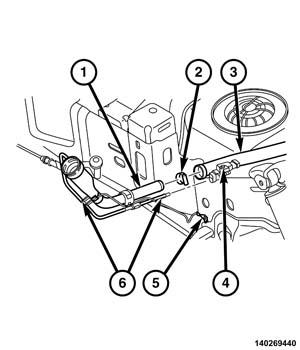

Fig 6: Remove/Install Filler Tube
Courtesy of CHRYSLER GROUP, LLC
Loosen the fuel filler tube hose clamp (2) at the fuel tank hose (3).
Disconnect the fuel breather tube (6) from the fuel tank pressure sensor (4).
Remove the filler tube from the vehicle.
