2500 - 5500 Heavy Duty

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

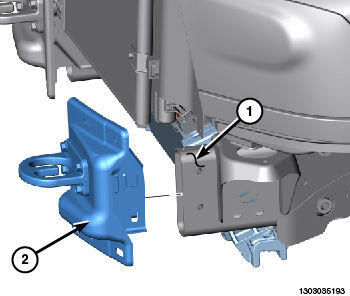

Fig 1: Frame Tip & Bumper Bracket
GC0158052Courtesy of CHRYSLER GROUP, LLC
  1. Install the bumper brackets (2) onto the frame tips (1).

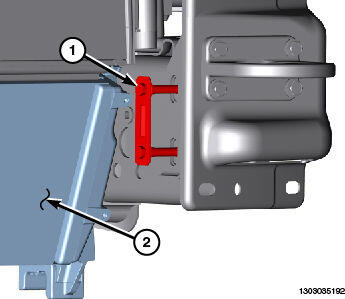

    Fig 2: Bolt Assembly & Charge Air Cooler
    GC0158200Courtesy of CHRYSLER GROUP, LLC
  2. Install the bolt assemblies (1).
    Fig 3: Bumper Bracket Support Nuts
    GC0158042Courtesy of CHRYSLER GROUP, LLC
  3. Install the bumper bracket support nuts (1).
    Fig 4: Tow Hook, Bolt & Nut
    GC0137148Courtesy of CHRYSLER GROUP, LLC
  4. If equipped, install the tow hooks (3) and install the bolts (2) and nuts (1).
  5. Tighten the nuts to 275 N.m (203 ft. lbs.).
    Fig 5: Bracket & Bolts
    GC0158103Courtesy of CHRYSLER GROUP, LLC
  6. Install the two brackets (2) and the bracket bolts (1).
  7. Tighten the bolts (1) to 28 N.m (21 ft. lbs.).

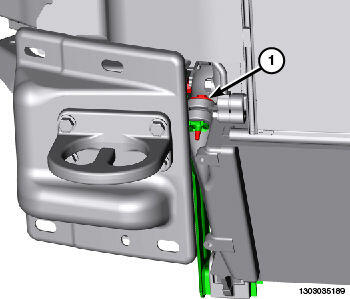

    Fig 6: Upper Charge Air Cooler Bolts
    GC0158111Courtesy of CHRYSLER GROUP, LLC
  8. Install the two upper charge air cooler bolts (1).

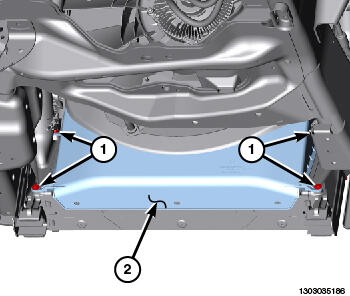

    Fig 7: Rear Shroud & Fasteners
    GC0158196Courtesy of CHRYSLER GROUP, LLC
  9. Install the rear shroud (2) and install the four fasteners (1).

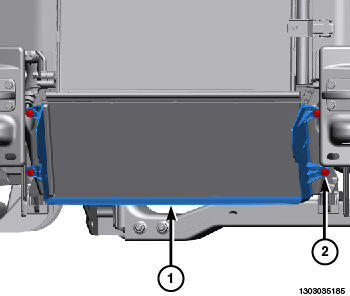

    Fig 8: Front Shroud & Fasteners
    GC0158117Courtesy of CHRYSLER GROUP, LLC
  10. Install the front shroud (1) and install the four fasteners (2).

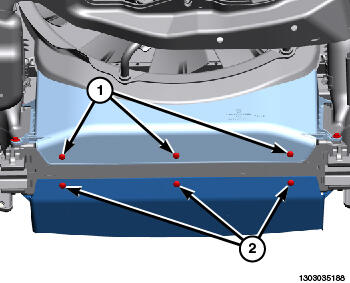

    Fig 9: Front & Rear Push Pins
    GC0158169Courtesy of CHRYSLER GROUP, LLC
  11. Install the push pin fasteners (1, 2).
    Fig 10: Identifying Front Bumper Electrical Connectors & Nuts
    GC0137147Courtesy of CHRYSLER GROUP, LLC
  12. Position the bumper onto the frame tip brackets and install the eight nuts (2).
  13. Connect the electrical connectors (1), if equipped.
    Fig 11: Identifying Front Bumper Nut Tightening Sequence
    GC0137150Courtesy of CHRYSLER GROUP, LLC
  14. Tighten the eight bumper nuts using the sequence shown in the illustration to 95 N.m (70 ft. lbs.).
    Fig 12: Identifying Bumper Brackets With Bolts & Nuts
    GC0137149Courtesy of CHRYSLER GROUP, LLC
  15. Check and adjust the bumper alignment as necessary. Refer to GAP AND FLUSH, SPECIFICATIONS .
  16. Tighten the nuts (1) to 95 N.m (70 ft. lbs.).
  17. Install the grille. Refer to GRILLE, INSTALLATION .
