WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

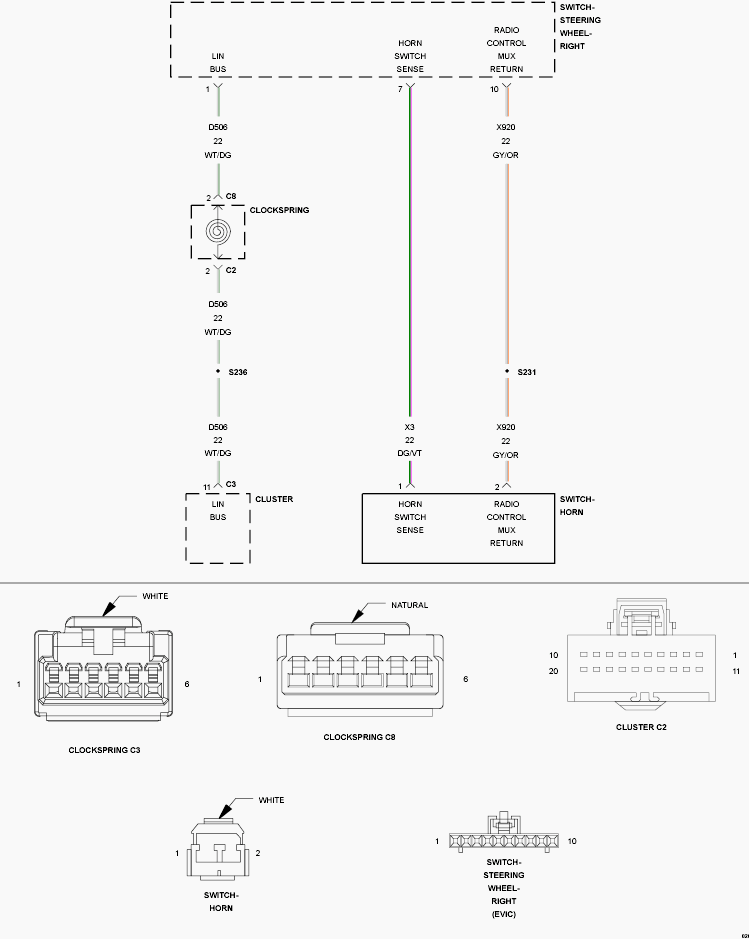

Fig 1: Horn Switch Wiring Diagram - With EVIC
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
