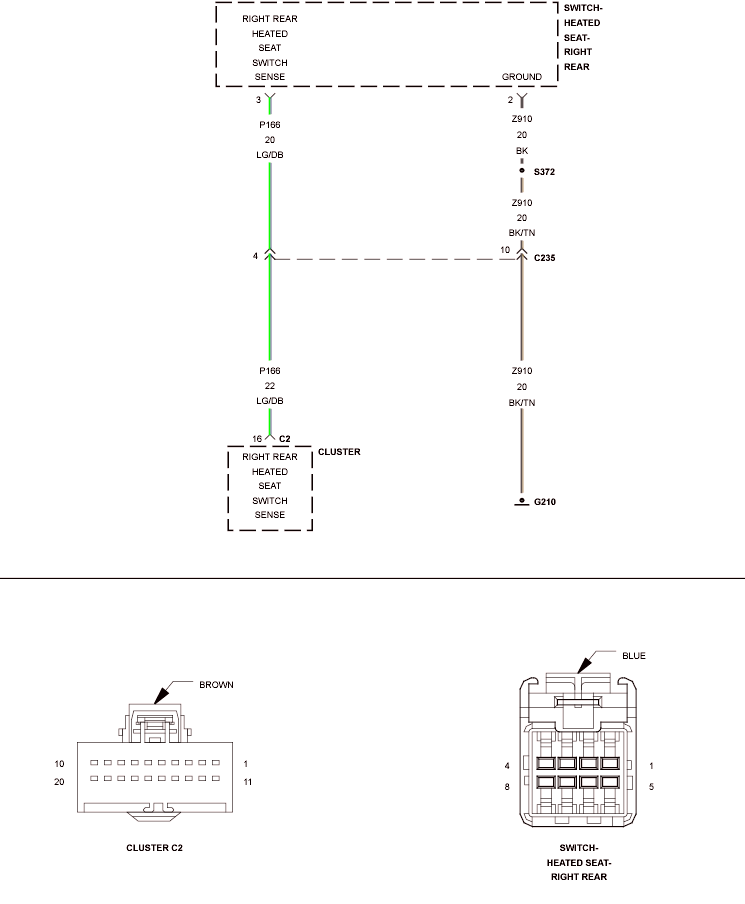

Fig 1: Right Rear Heated Seat Wiring Diagram
Courtesy of CHRYSLER LLC
For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article
.
