Module, Transmission Control: Installation: AISIN

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

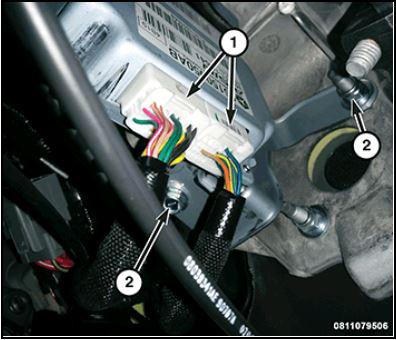

G00580982Courtesy of CHRYSLER GROUP, LLC
  1. Position and install the Transmission Control Module (TCM) to the bracket.
  2. Position the TCM with bracket to the vehicle for installation.
  3. Install the two retaining bolts (2) that secure the TCM with bracket to the vehicle.
  4. Connect the wiring harness connectors (1) to the TCM.
  5. Connect the negative battery cable.
