Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. DTC IS ACTIVE
    1. Ignition on, engine not running.
    2. With the scan tool, record and erase DTCs.
    3. Test drive the vehicle.
    4. Ignition on, engine not running.
    5. With the scan tool, read DTCs.

      Is the status Active for this DTC?

      Yes

      • Go To  2.

      No

      • Go To  7.
  2. (T315) STEP MOTOR CONTROL A CIRCUIT OPEN
    Fig 1: Checking Step Motor Control A Circuit For Open
    GC0090130Courtesy of CHRYSLER LLC
    1. Turn the ignition off to the lock position
    2. Disconnect the Transfer Case Motor harness connector.
    3. Disconnect the DTCM C2 harness connector.
    4. Measure the resistance of the (T315) Step Motor Control A circuit from the Transfer Case Motor harness connector to the DTCM C2 harness connector.

      Is the resistance above 5.0 Ohms?

      Yes

      No

      • Go To  3.
  3. (T316) STEP MOTOR CONTROL B CIRCUIT OPEN
    Fig 2: Checking Step Motor Control B Circuit For Open
    GC0090131Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (T316) Step Motor Control C circuit from the Transfer Case Motor harness connector to the Final Drive Control Module C2 harness connector.

      Is the resistance above 5.0 Ohms?

      Yes

      No

      • Go To  4.
  4. (T315) STEP MOTOR CONTROL A CIRCUIT SHORTED TO VOLTAGE

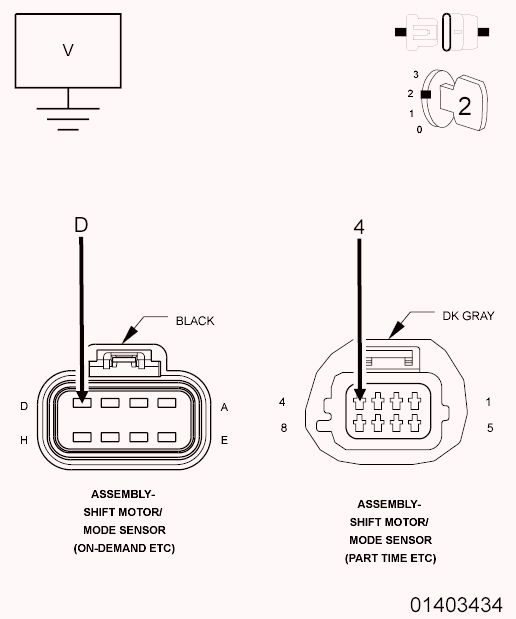

    Fig 3: Checking Step Motor Control A Circuit For Short
    GC0090132Courtesy of CHRYSLER LLC
    1. Ignition on, engine not running.
    2. Measure the voltage of the (T315) Step Motor Control A circuit at the Transfer Case Motor harness connector.

      Is the voltage above 0.5 of a volt?

      Yes

      • Repair the (T315) Step Motor Control A circuit for a short to voltage.
      • Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST  .

      No

      • Go To  5.
  5. (T316) STEP MOTOR CONTROL B CIRCUIT SHORTED TO VOLTAGE

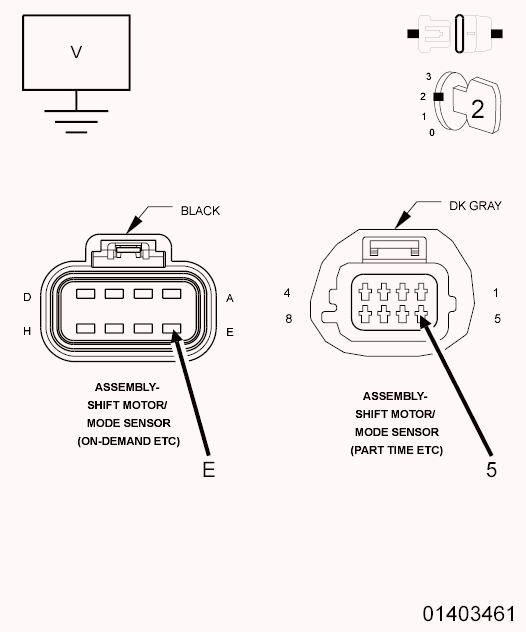

    Fig 4: Checking Step Motor Control B Circuit For Short
    GC0090133Courtesy of CHRYSLER LLC
    1. Measure the voltage of the (T316) Step Motor Control B circuit at the Transfer Case Motor harness connector.

      Is the voltage above 0.5 of a volt?

      Yes

      • Repair the (T316) Step Motor Control B circuit for a short to voltage.
      • Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST  .

      No

      • Go To  6.
  6. TRANSFER CASE SHIFT MOTOR/MODE SENSOR ASSEMBLY

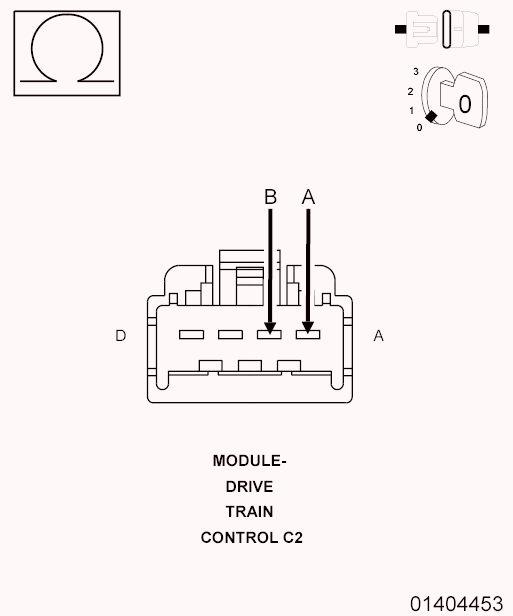

    Fig 5: Checking Transfer Case Shift Motor/Mode Sensor Assembly
    GC0090134Courtesy of CHRYSLER LLC
    1. Connect the Transfer Case Shift Motor/Mode Sensor Assembly harness connector.
    2. Measure the resistance between the (T315) Step Motor Control A circuit and the (T316) Step Motor Control B circuit at the Final Drive Control Module C2 harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Replace the Drive Train Control Module (DTCM) in accordance with the Service Information.
      • Perform the DTCM VERIFICATION TEST. Refer to DTCM VERIFICATION TEST  .

      No

      • Replace the shorted Transfer Case Shift Motor/Mode Sensor Assembly in accordance with the Service Information.
      • Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST  .
  7. INTERMITTENT WIRING HARNESS AND CONNECTORS
    1. The conditions necessary to set this DTC are not present at this time.
    2. Using the wiring diagram/schematic as a guide, inspect the wiring harness and connectors.
    3. Wiggle test the wiring harness and connectors while monitoring the scan tool data relative to this circuit.
    4. Look for the data to change or for the DTC to reset during the wiggle test.
    5. While monitoring the scan tool data relative to this circuit, move the selector switch to each position several times.
    6. Look for the data to change other than as expected or for the DTC to reset.

      Were any problems found?

      Yes

      No

      • Test complete.
