Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. VERIFY THE DTC IS ACTIVE
    1. Ignition on, engine not running.
    2. With the scan tool, record and erase DTCs.
    3. Test drive the vehicle.
    4. Ignition on, engine not running.
    5. With the scan tool, read DTCs.

      Is the DTC active at this time?

      Yes

      • Go To  2.

      No

      • Go To  7.
  2. (T301) SWITCHED BATTERY SOLENOID SUPPLY CIRCUIT OPEN

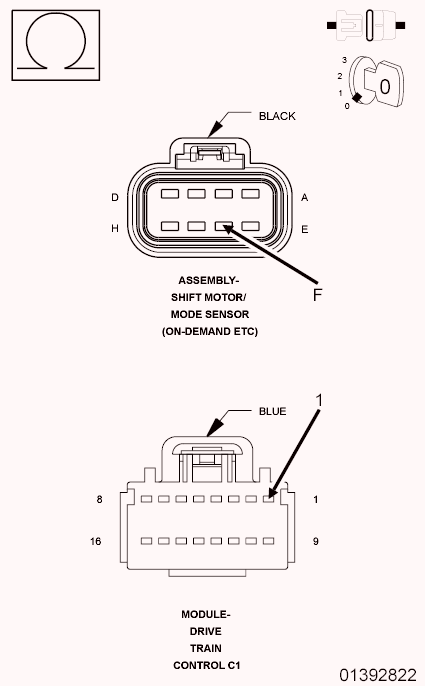

    Fig 1: Checking Switched Battery Solenoid Supply Circuit For Open
    GC0090123Courtesy of CHRYSLER LLC
    1. Turn the ignition off to the lock position
    2. Disconnect the Transfer Case Shift Motor/Mode Sensor Assembly harness connector.
    3. Disconnect the DTCM C1 harness connector.
    4. Measure the resistance of the (T301) Switched Battery Solenoid Supply circuit between the Transfer Case Motor harness connector and the DTCM C1 harness connector.

      Is the resistance above 5.0 Ohms?

      Yes

      • Repair the (T301) Switched Battery Solenoid Supply circuit for an open.
      • Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST  .

      No

      • Go To  3.
  3. (T317) TRANSFER CASE MOTOR LOCK SIGNAL CIRCUIT OPEN

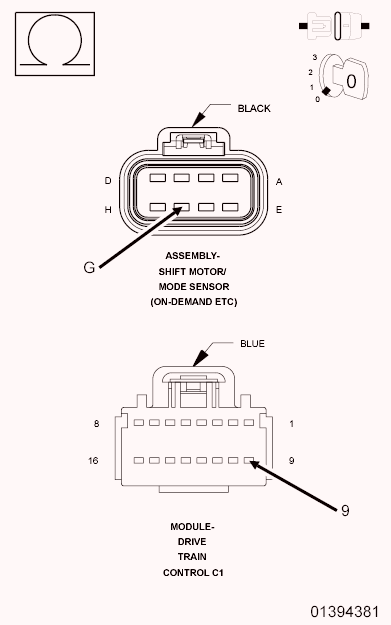

    Fig 2: Checking Transfer Case Motor Lock Signal Circuit For Open
    GC0090124Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (T317) Transfer Case Motor Lock Signal circuit between the Transfer Case Shift Motor/Mode Sensor Assembly harness connector and the DTCM C1 harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Repair the (T317) Transfer Case Shift Motor/Mode Sensor Assembly Lock Signal circuit for an open.
      • Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST  .

      No

      • Go To  4.
  4. (T301) SWITCHED BATTERY SOLENOID SUPPLY CIRCUIT SHORTED TO VOLTAGE

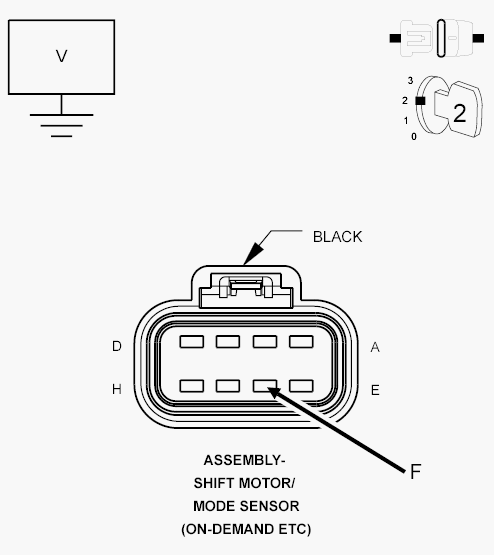

    Fig 3: Checking Switched Battery Solenoid Supply Circuit For Short
    GC0090125Courtesy of CHRYSLER LLC
    1. Ignition on, engine not running.
    2. Measure the voltage of the (T301) Switched Battery Solenoid Supply circuit in the Transfer Case Motor harness connector.

      Is any voltage present?

      Yes

      • Repair the (T301) Switched Battery Solenoid Supply circuit for a short to voltage.
      • Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST  .

      No

      • Go To  5.
  5. TRANSFER CASE SHIFT MOTOR/MODE SENSOR ASSEMBLY

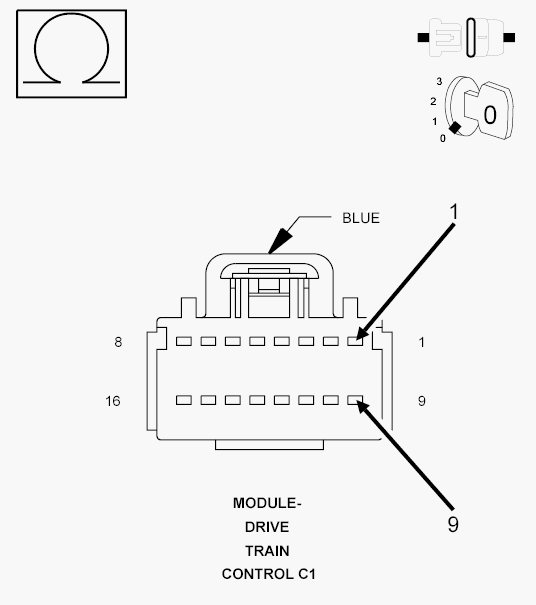

    Fig 4: Checking Transfer Case Shift Motor/Mode Sensor Circuit
    GC0090126Courtesy of CHRYSLER LLC
    1. Turn the ignition off to the lock position
    2. Connect the Transfer Case Shift Motor/Mode Sensor Assembly harness connector.
    3. Measure the resistance of the (T317) Transfer Case Motor Lock Signal circuit and the (T301) Switched Battery Solenoid Supply in the DTCM C1 harness connector.

      Is the resistance greater than 20 Ohms?

      Yes

      • Replace the Transfer Case Shift Motor/Mode Sensor Assembly in accordance with the Service Information.
      • Perform the TRANSFER CASE VERIFICATION TEST. Refer to TRANSFER CASE VERIFICATION TEST  .

      No

      • Go To  6.
  6. DRIVE TRAIN CONTROL MODULE (DTCM)
    1. Connect the DTCM C1 harness connector.
    2. Ignition on, engine not running.
    3. With the scan tool, erase DTCs.
    4. With the scan tool, read DTCs.

      Does the DTC remain active?

      Yes

      • Replace the Drive Train Control Module (DTCM) in accordance with the Service Information.
      • Perform the DTCM VERIFICATION TEST. Refer to DTCM VERIFICATION TEST  .

      No

      • Go To  7.
  7. INTERMITTENT WIRING HARNESS AND CONNECTORS
    1. The conditions necessary to set this DTC are not present at this time.
    2. Using the wiring diagram/schematic as a guide, inspect the wiring harness and connectors.
    3. Wiggle test the wiring harness and connectors while monitoring the scan tool data relative to this circuit.
    4. Look for the data to change or for the DTC to reset during the wiggle test.
    5. While monitoring the scan tool data relative to this circuit, move the selector switch to each position several times.
    6. Look for the data to change other than as expected or for the DTC to reset.

      Were any problems found?

      Yes

      No

      • Test complete.
