Tray, Battery: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

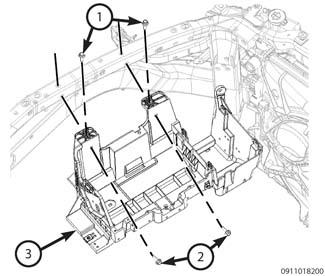

Fig 1: Removing/Installing Battery Tray
GC0158093Courtesy of CHRYSLER GROUP, LLC
  1. Remove the battery (3) from the battery tray. Refer to BATTERY, REMOVAL .
  2. Remove the Power Distribution Center (PDC) (5).
  3. Disconnect the wire harness retainers from the battery tray assembly.
  4. Remove the left front wheelhouse splash shield. Refer to SHIELD, SPLASH, FRONT WHEELHOUSE, REMOVAL .
    Fig 2: Removing/Installing Battery Tray (Left Side) 2 Of 2
    GC0083471Courtesy of CHRYSLER GROUP, LLC
  5. Mark the location of the cruise servo (3) (if equipped) and remove the retaining screws. Position the servo out of the way.
  6. Disconnect the left front fender ground wire.
  7. Remove the remaining battery tray retaining bolts (2).
  8. Remove the battery tray from the vehicle.
