Pipe, Exhaust Extension: Removal: 6.4L

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

Raise and support the vehicle. Refer to HOISTING, STANDARD PROCEDURE .

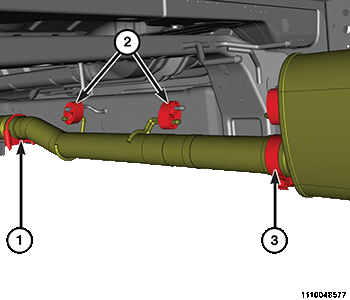

Fig 1: Band Clamp Nuts, Isolators & Muffler
Courtesy of CHRYSLER GROUP, LLC

NOTE: Hangers and isolators may vary depending on wheelbase and model.

Remove the muffler (3). Refer to MUFFLER, EXHAUST, REMOVAL .
Disconnect the isolators (2) from exhaust extension pipe.
Saturate the band clamp nuts (1) with heat valve lubricant and allow 5 minutes for penetration.
Loosen band clamp nut and remove the exhaust extension pipe.
