Muffler, Exhaust: Installation: 6.4L

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

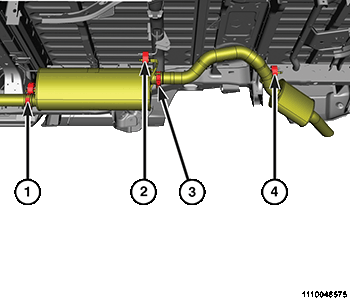

Fig 1: Band Clamp Nut, Hanger Isolators, Tailpipe Band Clamp & Hanger Isolator

Courtesy of CHRYSLER GROUP, LLC

Install the muffler hanger isolators (2).
Install the muffler to the exhaust extension pipe and tighten band clamp nut (1) to the proper. Refer to SPECIFICATIONS .
Position the tailpipe to the muffler.
Install the tailpipe hanger isolator (4).
Tighten the tailpipe to muffler band clamp nut (3) to the proper. Refer to SPECIFICATIONS .
Check the exhaust system for contact with the body panels. A minimum of 25 mm (1.0 in.) is required between the exhaust system components and body/frame parts. Make the necessary adjustments, if needed.
Start the engine and inspect for exhaust leaks. Repair exhaust leaks as necessary.
