Duct, Instrument Panel: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:

Disable the airbag system before attempting any steering wheel, steering column or instrument panel component diagnosis or service. Disconnect and isolate the negative battery (ground) cable and wait two minutes for the airbag system capacitor to discharge before performing further diagnosis or service. This is the only sure way to disable the airbag system. Failure to follow these instructions may result in accidental airbag deployment and possible serious or fatal injury.

NOTE:

Take the proper precautions to protect the instrument panel from cosmetic damage.

Fig 1: Center Distribution & Driver Side Demister Duct
GC0089535Courtesy of CHRYSLER GROUP, LLC
  1. Remove the instrument panel and place it on a workbench. Refer to PANEL, INSTRUMENT, REMOVAL .
  2. Remove the instrument panel cover. Refer to COVER, INSTRUMENT PANEL, REMOVAL .
  3. Remove the retainer (1) that secures the driver side demister duct (2) to the end of the instrument panel support (4).
  4. Disconnect the driver side demister duct from the center distribution duct (3) and remove the demister duct.
    Fig 2: Passenger Side Demister Duct & Passenger Side Instrument Panel Duct
    GC0089536Courtesy of CHRYSLER GROUP, LLC
  5. Remove the retainer (1) that secures the passenger side demister duct (5) to the end instrument panel support (6).
  6. Remove the retainer (2) that secures the passenger side demister duct to the passenger side instrument panel duct (3).
  7. Disconnect the passenger side demister duct from the center distribution duct (4) and remove the demister duct.

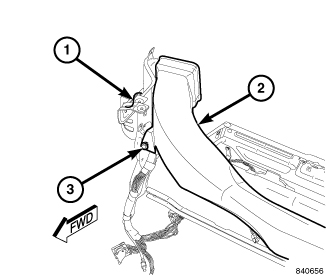

    Fig 3: Passenger Side Instrument Panel Duct
    GC0089537Courtesy of CHRYSLER GROUP, LLC
  8. Remove the retainer (3) that secures the passenger side instrument panel duct (2) to the end of the instrument panel support (1).

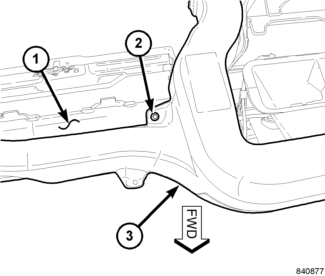

    Fig 4: Passenger Side Instrument Panel Duct & Middle Support
    GC0089538Courtesy of CHRYSLER GROUP, LLC
  9. Remove the retainer (2) that secures the passenger side instrument panel duct (3) to the middle of the instrument panel support (3).

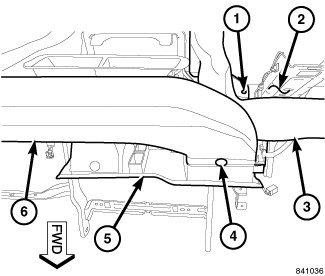

    Fig 5: Passenger Side Instrument Panel Duct
    GC0089539Courtesy of CHRYSLER GROUP, LLC
  10. Remove the retainer (1) that secures the driver side instrument panel duct (3) to the middle of the instrument panel support (2).
  11. Remove the retainer (4) that secures the passenger side instrument panel duct (6) to the middle of the center distribution duct (5).

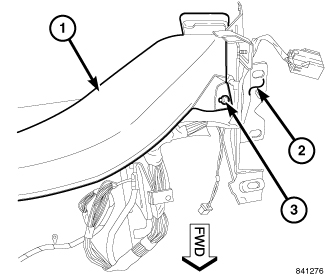

    Fig 6: Driver Side Instrument Panel Duct
    GC0089540Courtesy of CHRYSLER GROUP, LLC
  12. Remove the retainer (3) that secures the driver side instrument panel duct (1) to the end of the instrument panel support (2).

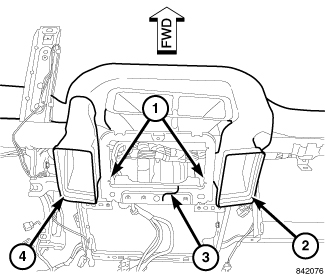

    Fig 7: Passenger & Driver Side Instrument Panel Duct
    GC0089541Courtesy of CHRYSLER GROUP, LLC
  13. Remove the two retainers (1) that secure the passenger side instrument panel duct (2) and the driver side instrument panel duct (4) to the middle of the instrument panel support (3).
  14. Remove the passenger side instrument panel duct.

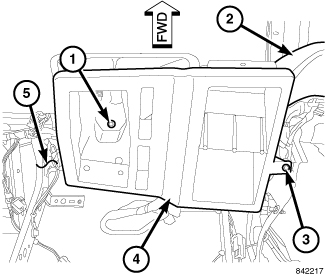

    Fig 8: Center Distribution Duct
    GC0089542Courtesy of CHRYSLER GROUP, LLC
  15. Remove the two retainers (1 and 3) that secure the center distribution duct (4) to the middle of the instrument panel support (5).
  16. Remove the driver side instrument panel duct (2) and the center distribution duct.
