Duct, Floor Console: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

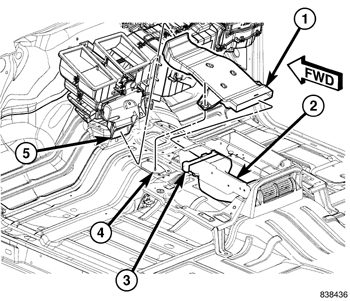

Fig 1: Floor Console Duct

Courtesy of CHRYSLER GROUP, LLC

NOTE:

Illustration shown with seat cushions removed for clarity.

NOTE:

Automatic transmission model shown in illustration. Manual transmission model similar.

Remove the floor console. Refer to CONSOLE, FLOOR, REMOVAL .
Disengage the floor console duct (1) from the rear duct adapter (3) and slide the adapter rearward into the rear duct (2).
Disengage the floor console duct from the stud (4) on the floor panel.
Disengage the floor console duct from the rear floor distribution duct (5) and remove the console duct.

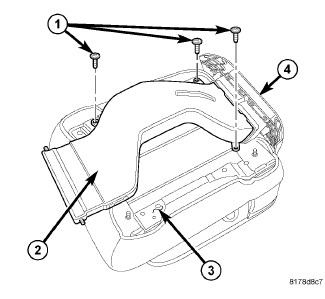

Fig 2: Identifying Rear Duct, Push-Pin Retainers & Center Seat Support
Courtesy of CHRYSLER GROUP, LLC

NOTE:
Illustration shown with center front seat removed for clarity.
If required, remove the front seat. Refer to SEAT, FRONT, REMOVAL and/or SEAT, FRONT CENTER, REMOVAL .
Remove the three push-pin retainers (1) that secure the rear duct (2) to the bottom of the center seat support (3).
Disengage the rear duct from the rear outlet (4) and remove the rear duct.
