Bearing, Axle Shaft: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

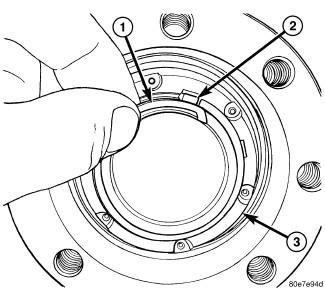

Fig 1: Identifying Retainer Ring
GC0107800Courtesy of CHRYSLER GROUP, LLC
  1. Remove axle shaft flange bolts and remove axle shaft.
  2. Remove retainer ring (1) from axle shaft tube.

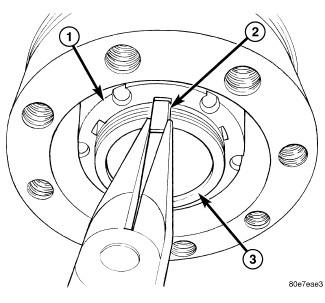

    Fig 2: Removing Hub Bearing Nut Locking Key
    GC0107801Courtesy of CHRYSLER GROUP, LLC
  3. Remove hub bearing nut (1) locking key (2) from axle tube (3).
  4. Remove hub bearing nut with Socket (special tool #8954, Hub Nut Socket).
  5. Remove hub and bearings from the axle.
    Fig 3: Prying Out Hub Bearing Seal
    GC0107802Courtesy of CHRYSLER GROUP, LLC
  6. Pry out hub bearing seal from the back of the hub.
    NOTE:

    The inner part of the seal (3) may stay on the axle tube (2). This part must also be removed with pry bar (1).

  7. Remove rear bearing.
  8. Remove hub bearing cups with a hammer and drift.
