Switch, Electronic Stability Program (Esp): Installation: Installation

WARNING: This page is about a different car, the 2014 RAM 3500 HD and 2014 RAM 2500 HD. However, it is still accessible from the selected car via links, so may be relevant.

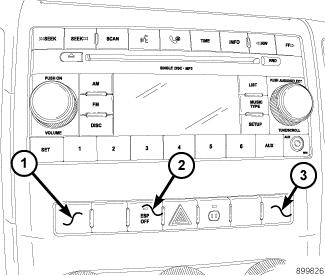

Fig 1: Switch Bank
GC0087398Courtesy of CHRYSLER GROUP, LLC
  1. Install the new switch (2) in the switch bank.
  2. Reconnect the electrical connector for the switch.
  3. Install the instrument panel center bezel. Refer to BEZEL, INSTRUMENT PANEL, CENTER, INSTALLATION .
