P064D-00-Internal Control Module 02 Sensors Processor Performance - Bank 1: Notes

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .

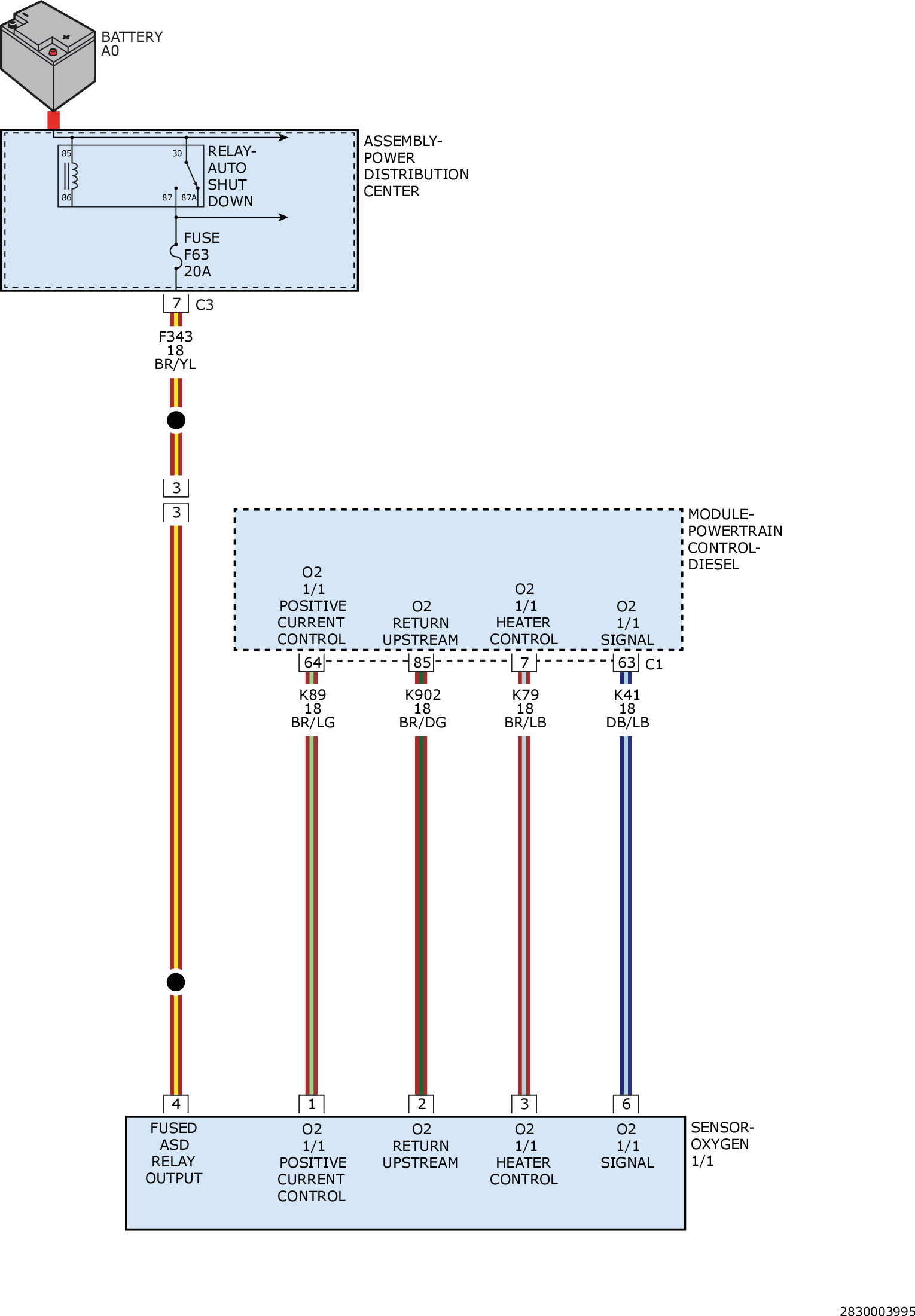

Fig 1: O2 Sensor 1/1 Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC
