P0403-00-EGR Control Circuit Open: Notes

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

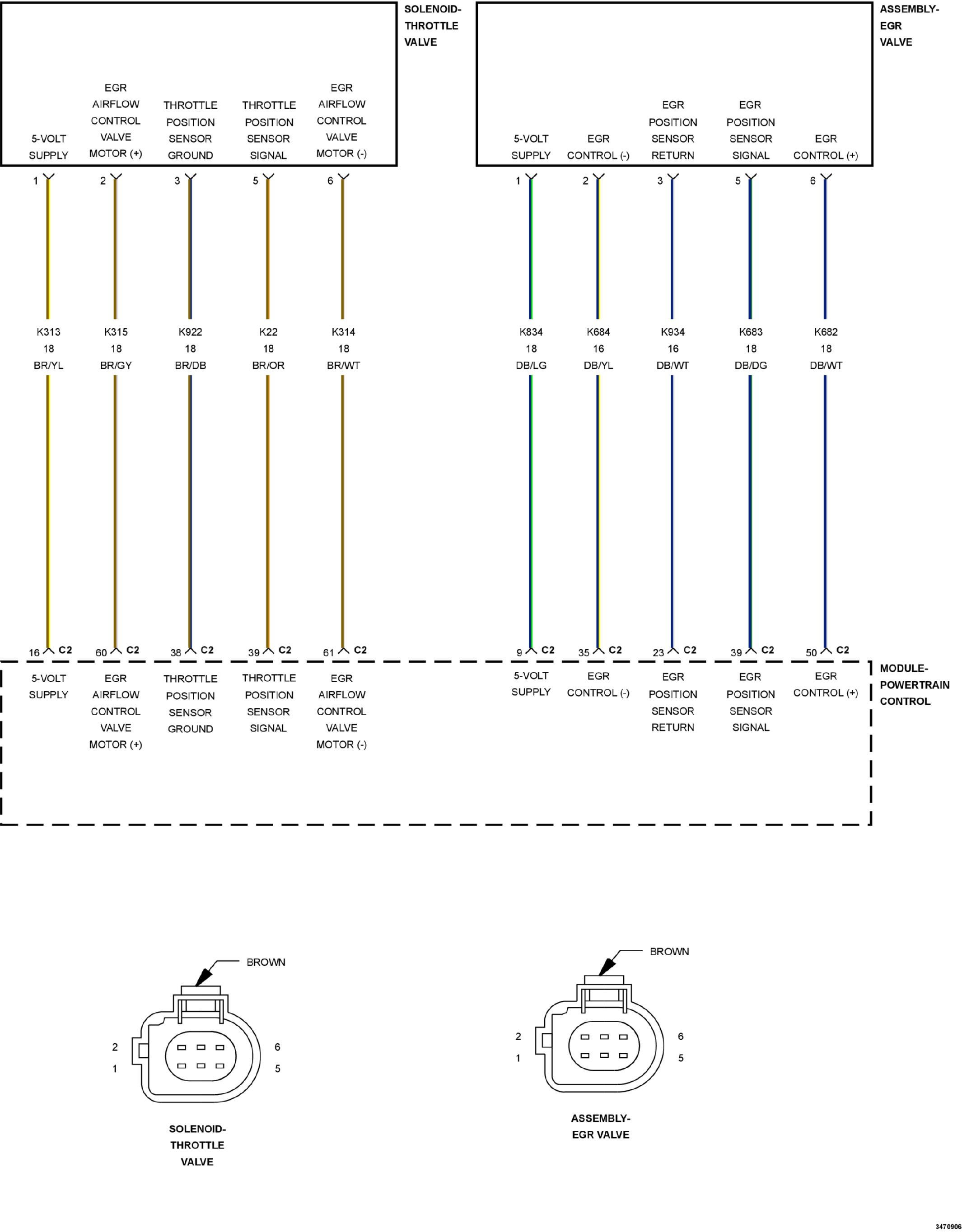

Fig 1: Electronic Throttle Control (ETC) & EGR Valve Control Circuit Diagram

Courtesy of CHRYSLER GROUP, LLC

For a complete wiring diagram, refer to appropriate SYSTEM WIRING DIAGRAMS article .
