Diagnostic Test

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
  1. VERIFY ACTIVE DTC
    NOTE:

    The Timing Belt/Chain must be correctly installed and operational before diagnosis can be made. Refer to the Service Information to ensure the timing belt is properly installed.

    NOTE:

    If the PCM detects and stores a DTC, the PCM also stores the engine/vehicle operating conditions under which the DTC was set. Some of these conditions are displayed on the scan tool at the same time the DTC is displayed. Before erasing stored DTCs, record these conditions. Attempting to duplicate these conditions may assist when checking for an active DTC.

    1. Turn the ignition on.
    2. With the scan tool, erase the PCM DTCs.
    3. Attempt to start the engine cranking the engine for at least 10 seconds.
    4. With the scan tool, read the PCM DTCs.
      NOTE:

      If any Sensor Reference DTCs are present, perform the applicable diagnostic procedure before continuing with this test.

      Does the scan tool display this DTC?

      Yes

      • Go To  3

      No

      • Go To  2
  2. TEST DRIVE
    1. Turn the ignition on.
    2. With the scan tool, erase the PCM DTCs.
    3. Test drive the vehicle.
    4. With the scan tool, read the PCM DTCs.

      Does the scan tool display this DTC?

      Yes

      • Go To  3

      No

      • Perform the INTERMITTENT CONDITION diagnostic procedure. Refer to INTERMITTENT DTC .
  3. CHECK THE (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT

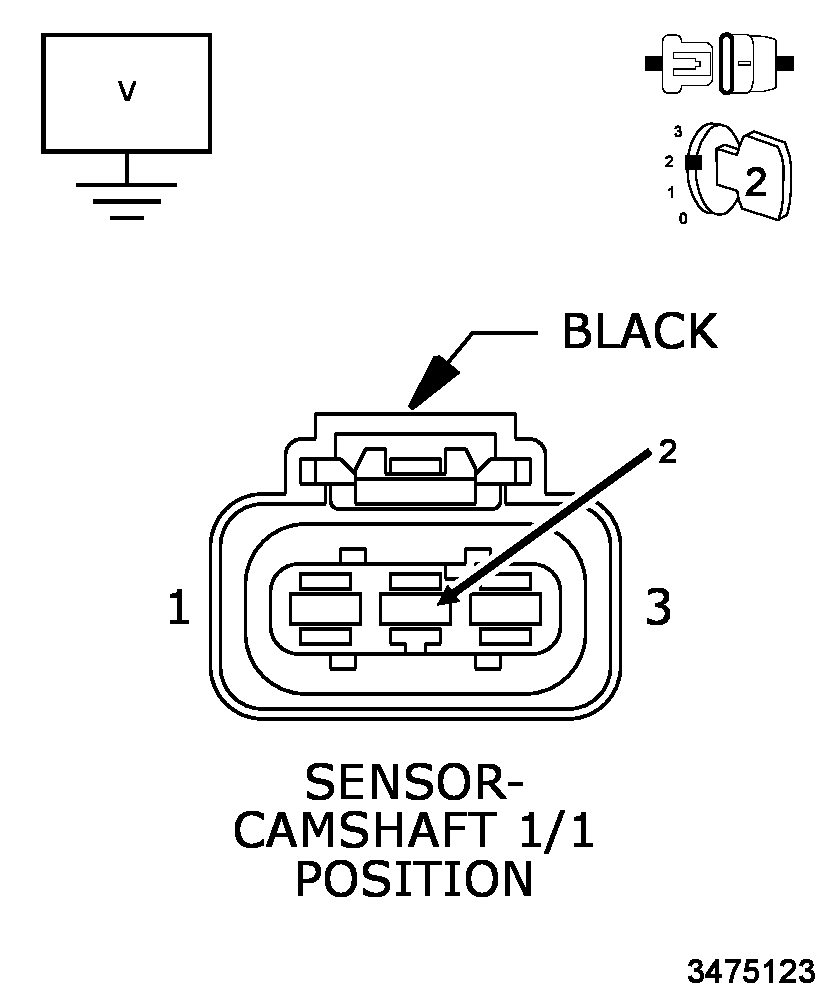

    Fig 1: Checking Camshaft Position Sensor Signal Circuit
    GC0143398Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the Camshaft Position Sensor harness connector.
    3. Turn the ignition on.
    4. Measure the voltage of the (K44) CMP Sensor Signal circuit at the CMP Sensor harness connector.

      Select the appropriate voltage reading.

      Voltage is above 5.2 volts

      • Go To  4

      Voltage is between 4.8 and 5.2 volts

      • Go To  5

      Voltage is below 4.8 volts

      • Go To  11
  4. CHECK THE (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT FOR A SHORT TO VOLTAGE
    Fig 2: Checking Camshaft Position Sensor Signal Circuit For Short To Voltage
    GC0143398Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C2 harness connector.
    3. Remove the ASD Relay.
    4. Connect a jumper wire between cavity 30 and cavity 87 of the ASD Relay connector.
    5. Turn the ignition on.
    6. Measure the voltage of the (K44) CMP Position Sensor Signal circuit at the CMP Sensor harness connector.

      Is the voltage below 1.0 volt?

      Yes

      No

      • Repair the (K44) Camshaft Position Sensor Signal circuit for a short to voltage.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  5. CHECK THE (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT

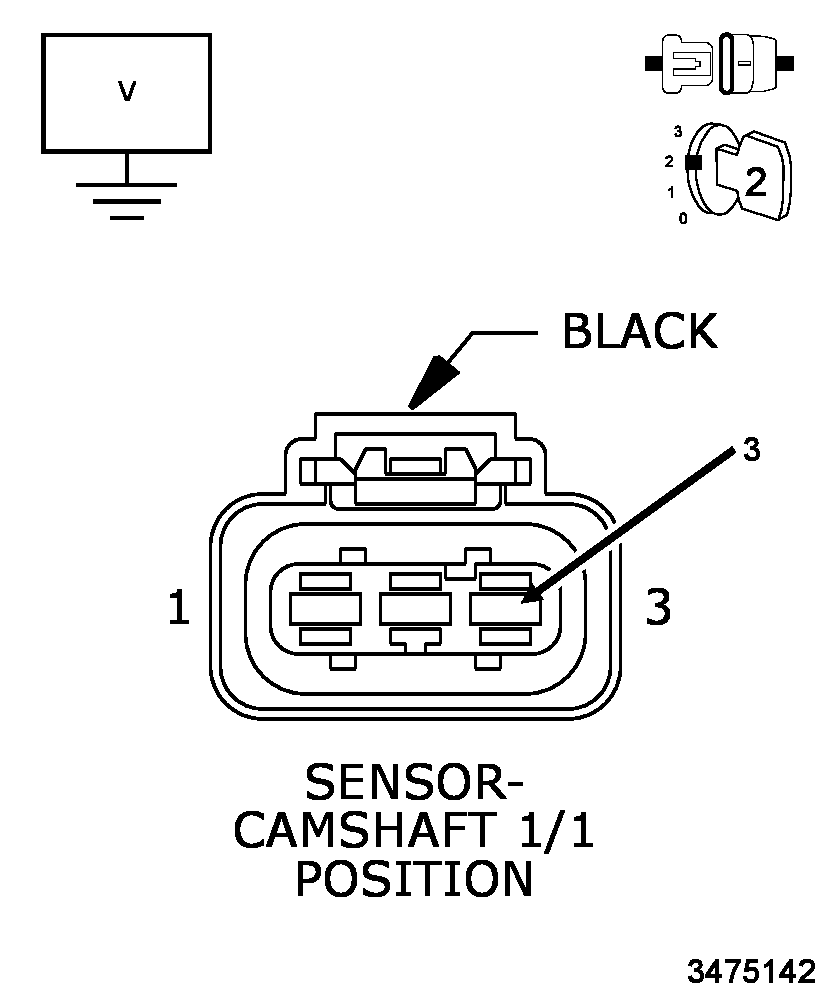

    Fig 3: Checking Camshaft Position Sensor 5-Volt Supply Circuit
    GC0143399Courtesy of CHRYSLER GROUP, LLC
    1. Measure the voltage of the (K844) CMP Sensor 5-Volt Supply circuit at the CMP Sensor harness connector.

      Select the appropriate voltage reading.

      Voltage is above 5.2 volts

      • Repair the (K844) CMP 5-Volt Supply circuit for a short to voltage.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      Voltage is between 4.8 and 5.2 volts

      • Go To  6

      Voltage is below 4.8 volts

      • Go To  8
  6. CHECK THE (K944) CAMSHAFT POSITION SENSOR GROUND CIRCUIT FOR AN OPEN/HIGH RESISTANCE

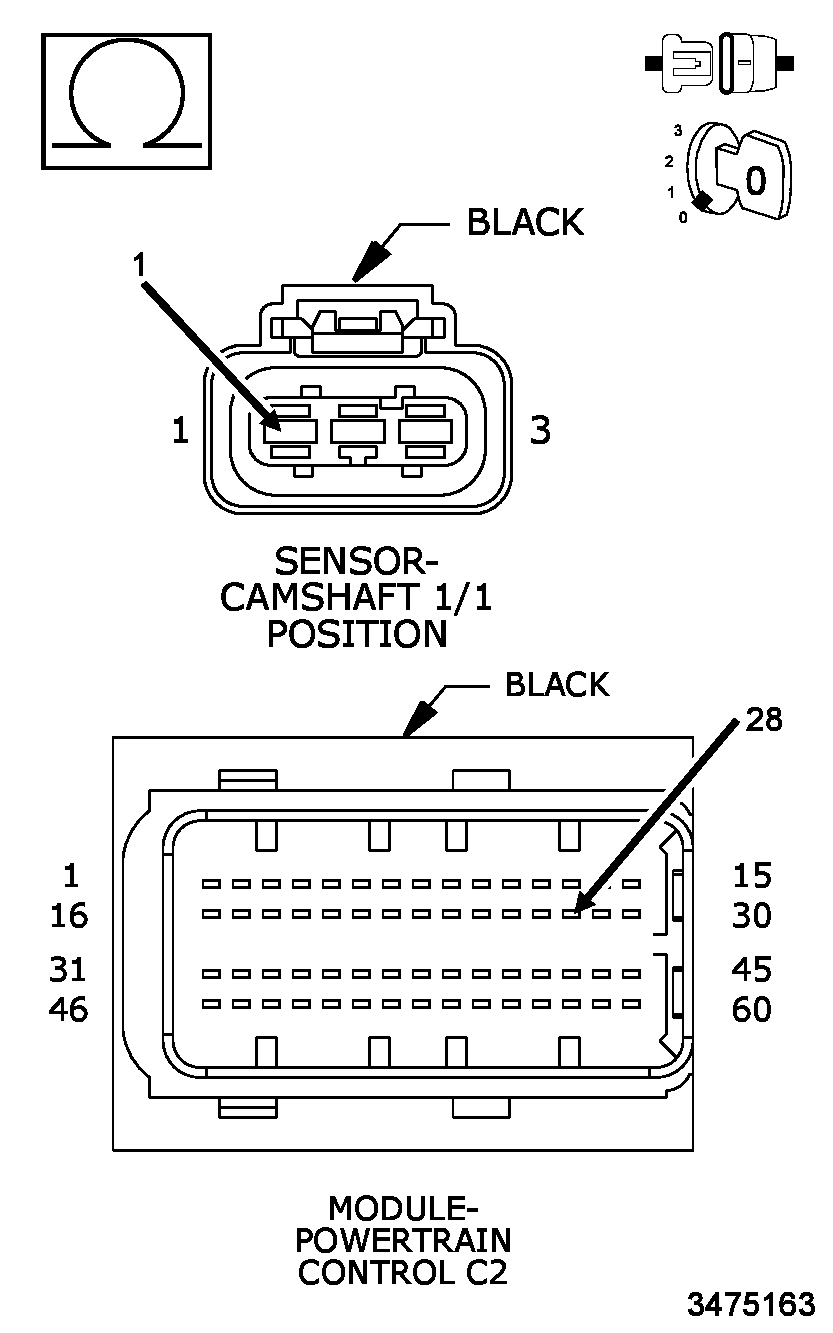

    Fig 4: Checking CMP Sensor Ground Circuit For An Open Or High Resistance
    GC0143400Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C2 harness connector.
    3. Measure the resistance of the (K944) CMP Sensor Ground circuit between the CMP Sensor harness connector and the PCM C2 harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  7

      No

      • Repair the (K944) CMP Sensor Ground circuit for an open or high resistance.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  7. DAMAGED CAMSHAFT POSITION SENSOR OR CAMSHAFT
    1. Turn the ignition off.
    2. Remove the CMP Sensor.
    3. Inspect the CMP Sensor for conditions such as loose mounting screws, damage, or cracks.
    4. Inspect the Camshaft Tone Wheel for conditions such as damage, debris or cracked teeth.

      Is there any evidence of these conditions?

      Yes

      • Replace the damaged Camshaft Position Sensor or Camshaft Tone Wheel in accordance with the service information. (Refer to REMOVAL ).
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

  8. CHECK THE (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT FOR AN OPEN/HIGH RESISTANCE

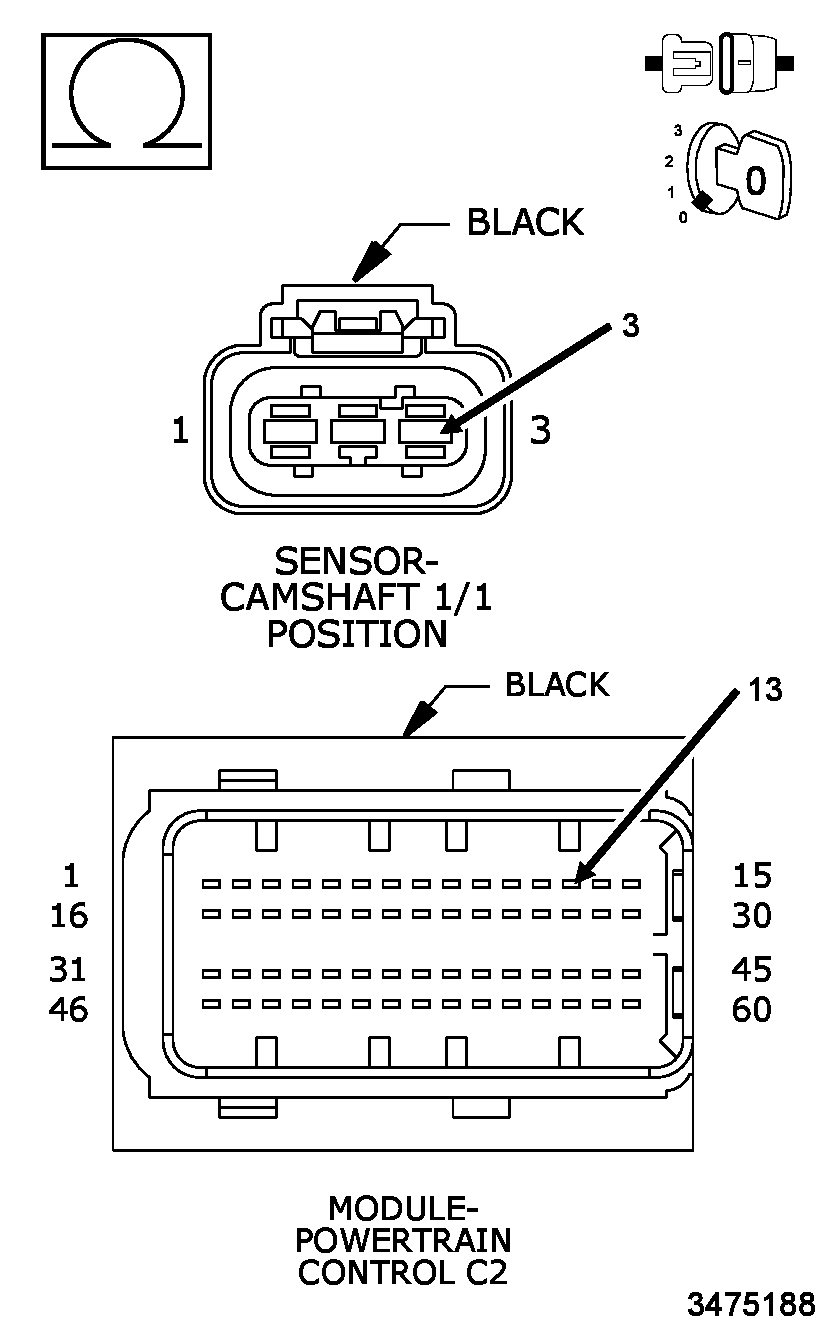

    Fig 5: Checking Camshaft Position Sensor 5-Volt Supply Circuit For An Open Or High Resistance
    GC0143401Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C1 harness connector.
    3. Measure the resistance of the (K844) CMP 5-Volt Supply circuit between the PCM C2 harness connector and the CMP Sensor harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  9

      No

      • Repair the (K844) CMP 5-Volt Supply circuit for an open or high resistance.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  9. CHECK THE (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT FOR A SHORT TO GROUND

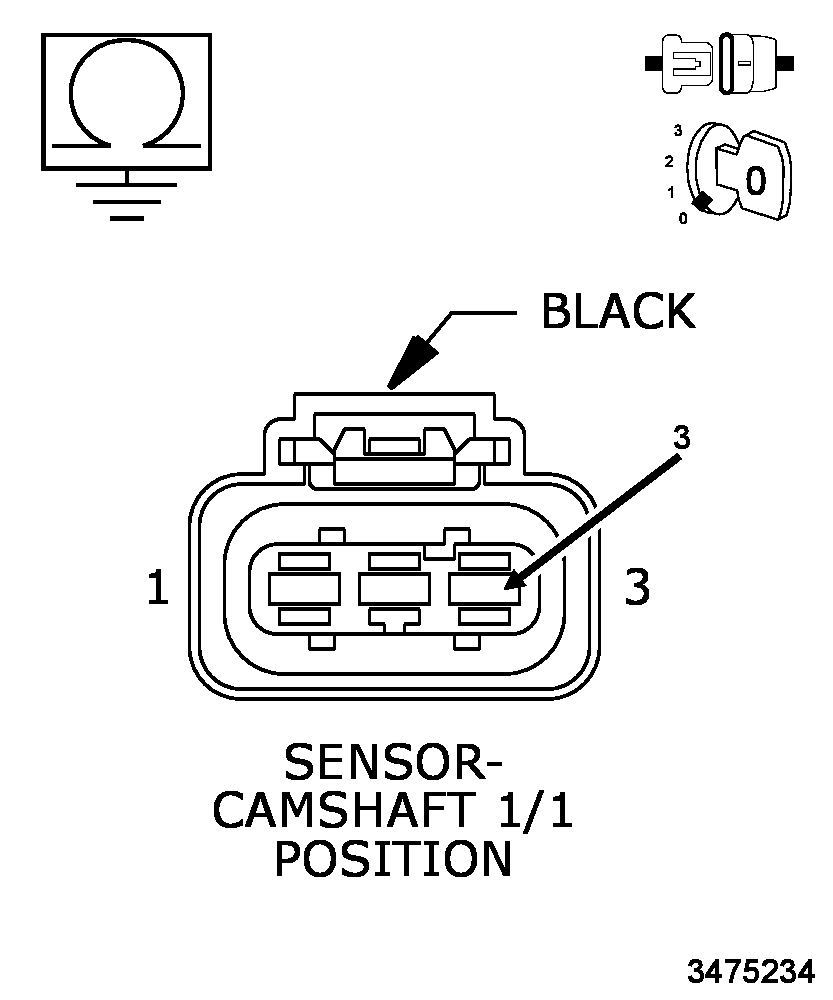

    Fig 6: Checking CMP Sensor 5-Volt Supply Circuit For A Short To Ground
    GC0143402Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between ground and the (K844) CMP Sensor 5-Volt Supply circuit at the CMP Sensor harness connector.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  10

      No

      • Repair the (K844) CMP Sensor 5-Volt Supply circuit for a short to ground.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  10. CHECK FOR THE (K844) CAMSHAFT POSITION SENSOR 5-VOLT SUPPLY CIRCUIT SHORTED TO THE (K944) CMP SENSOR GROUND CIRCUIT

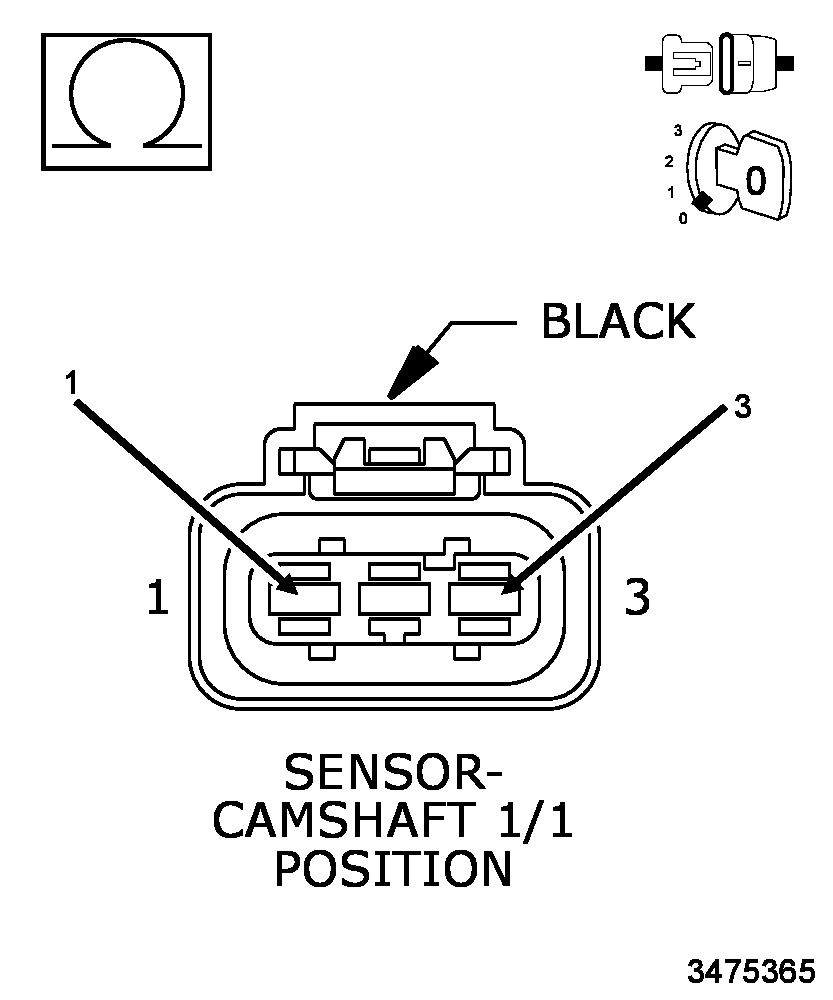

    Fig 7: Checking For CMP Sensor 5-Volt Supply Circuit Shorted To CMP Sensor Ground Circuit
    GC0143404Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (K844) CMP Sensor 5-Volt Supply circuit and the (K944) CMP Sensor Ground circuit at the CMP Sensor harness connector.

      Is the resistance above 10k Ohms?

      Yes

      • Replace and program the Powertrain Control Module in accordance with the service information. Refer to REMOVAL .
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .

      No

      • Repair the (K844) CMP Sensor 5-Volt Supply circuit for a short to the (K944) CMP Sensor Ground circuit.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  11. CHECK THE (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT FOR AN OPEN/HIGH RESISTANCE

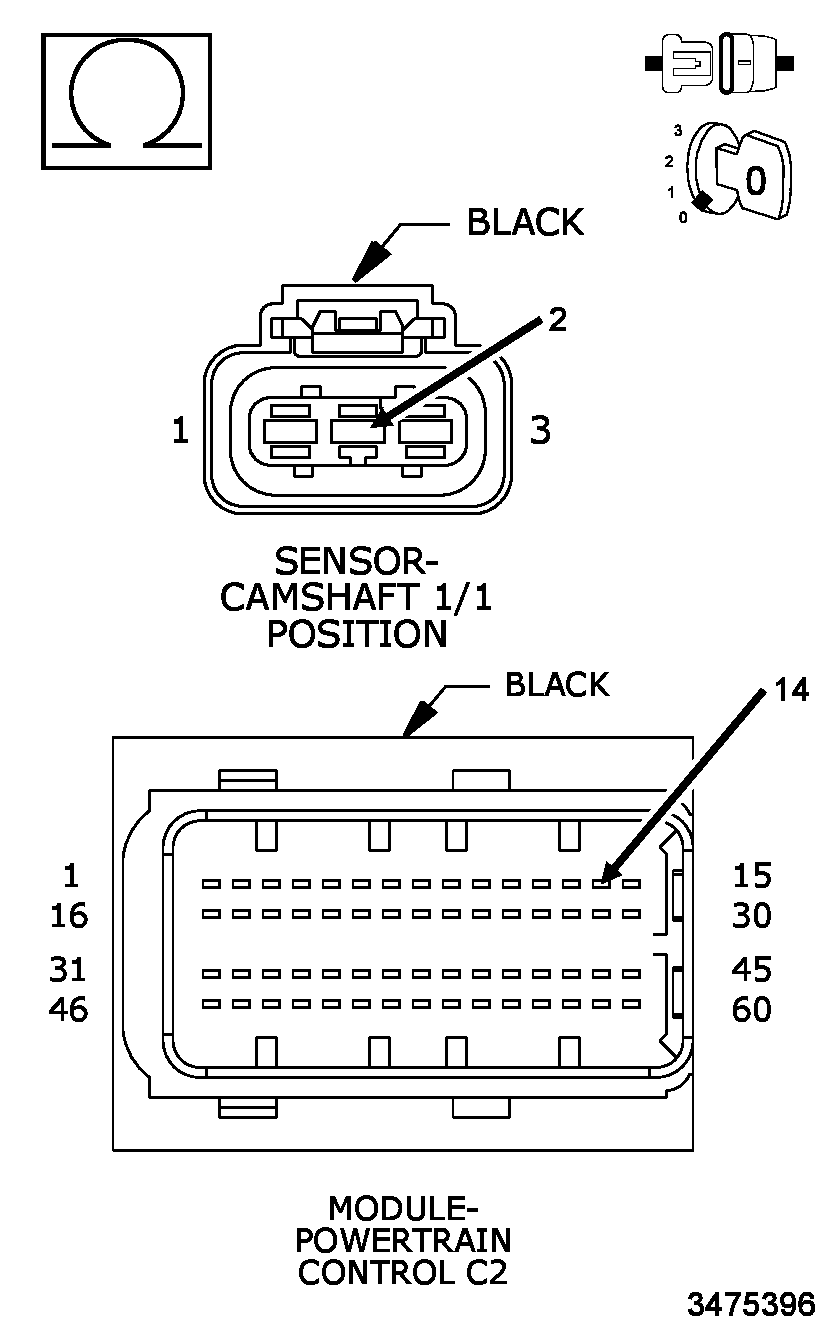

    Fig 8: Checking CMP Sensor Signal Circuit For An Open Or High Resistance
    GC0143406Courtesy of CHRYSLER GROUP, LLC
    1. Turn the ignition off.
    2. Disconnect the PCM C2 harness connector.
    3. Measure the resistance of the (K44) CMP Sensor Signal circuit between the PCM C2 harness connector and the CMP Sensor harness connector.

      Is the resistance below 5.0 Ohms?

      Yes

      • Go To  12

      No

      • Repair the (K44) CMP Sensor Signal circuit for an open or high resistance.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  12. CHECK THE (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT FOR A SHORT TO GROUND
    Fig 9: Checking Camshaft Position Sensor Signal Circuit For A Short To Ground

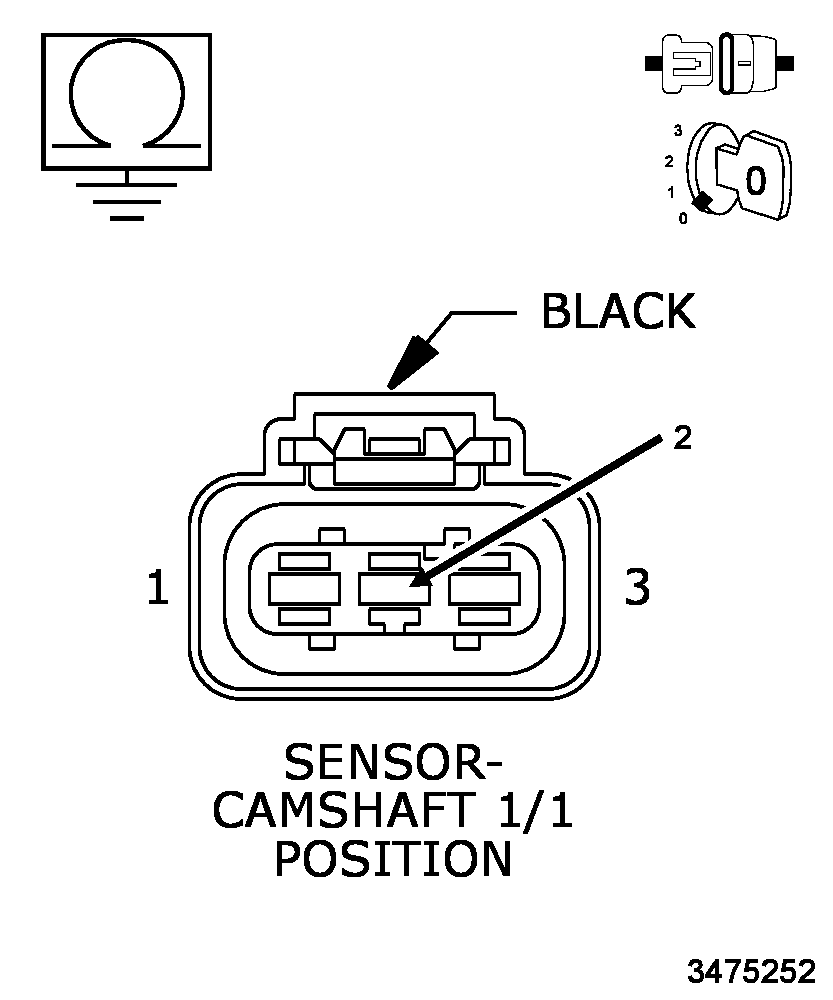

    GC0143403Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between ground and the (K44) CMP Sensor Signal circuit at the CMP Sensor harness connector.

      Is the resistance above 10k Ohms?

      Yes

      • Go To  13

      No

      • Repair the (K44) CMP Sensor Signal circuit for a short to ground.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
  13. CHECK FOR THE (K44) CAMSHAFT POSITION SENSOR SIGNAL CIRCUIT SHORTED TO THE (K944) CAMSHAFT POSITION SENSOR GROUND CIRCUIT

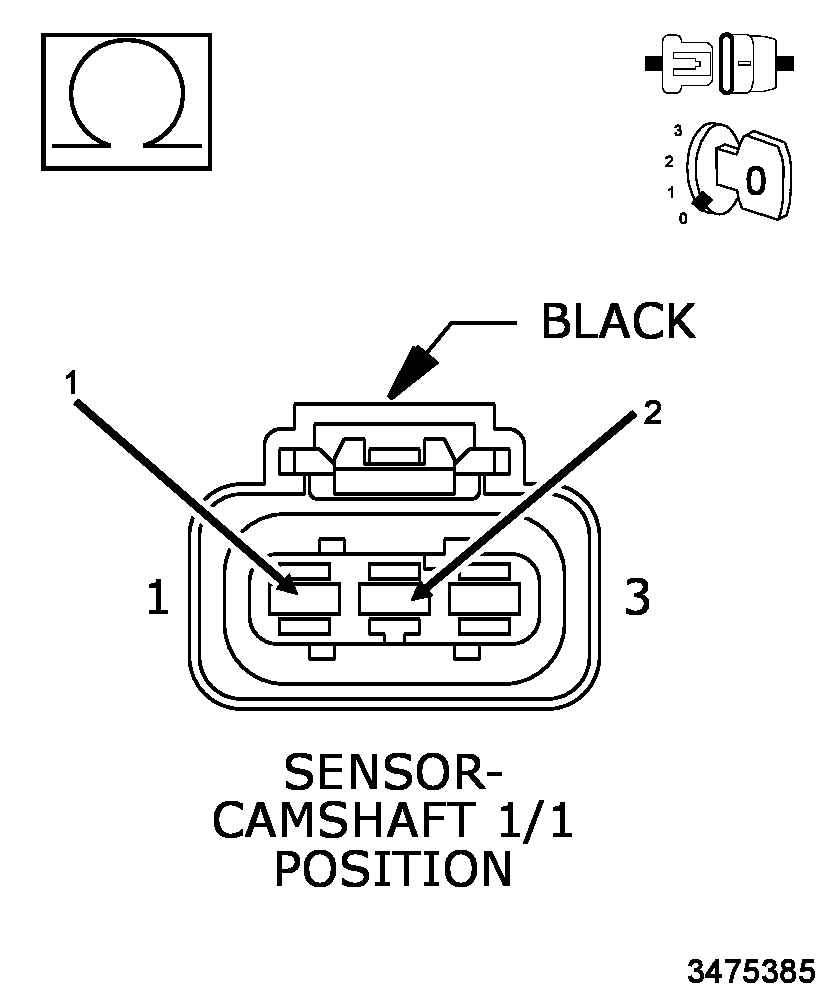

    Fig 10: Checking CMP Sensor Signal Circuit For A Short To CMP Sensor Ground Circuit
    GC0143405Courtesy of CHRYSLER GROUP, LLC
    1. Measure the resistance between the (K44) CMP Sensor Signal circuit and the (K944) CMP Sensor Ground circuit at the CMP Sensor harness connector.

      Is the resistance above 10k Ohms?

      Yes

      No

      • Repair the (K44) CMP Sensor Signal circuit for a short to the (K944) CMP Sensor Ground circuit.
      • Perform the PCM VERIFICATION TEST. Refer to PCM VERIFICATION TEST .
