Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. VERIFY ACTIVE DTC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    NOTE:

    Using the wiring diagram/schematic as a guide check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.

    NOTE:

    If after the harness inspection it appears the impact sensor connector is only seated halfway. Reseat the harness connector into the impact sensor and lock the tab. Follow the instructions below checking for active codes.

    WARNING:

    Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    NOTE:

    Make sure the battery is fully charged.

    1. Turn the ignition on.
    2. With the scan tool, read ORC DTCs.

      Does the scan tool display active Service Info B0096-49-RIGHT SIDE ACCELERATION SENSOR 1 - INTERNAL ELECTRONIC FAILURE, B0097-49-RIGHT SIDE ACCELERATION SENSOR 2 - INTERNAL ELECTRONIC FAILURE, U0175-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 1, U0176-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 2 , U11B0-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 4 - DTC?

      Yes

        NOTE:

        Check for the active codes and repair for the fault starting with the Internal failure code or codes, check for active or stored status. Upon fixing the right side impact sensor 1 then check the right side impact sensor 2 internal fault if status changes to stored for all codes fault is fixed if status is still active proceed to the right side impact sensor 1 loss of comm check for status of the right side impact sensor 1 code status being active. If all codes go to stored status, fault in daisy chain is fixed if code status is still active continue. Check the right side impact sensor 2 check for status of the right side impact sensor 2 code going to stored. If status of all codes goes to stored status, fault in daisy chain is fixed if code status is still active continue. Check the right side impact sensor 4, fix fault and check for status of code going to stored status.

      • Check for all other internal and lost communication codes indicated in the right side impact sensor daisy chain wiring before diagnosing DTC U11B0-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 4. Go To The DTC Displayed. Refer to Diagnosis and Testing . If internal fault 1, internal fault 2, and lost comm fault 1, and lost comm fault 2 have been checked follow DTC U11B0-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 4. Go To  2.

      No

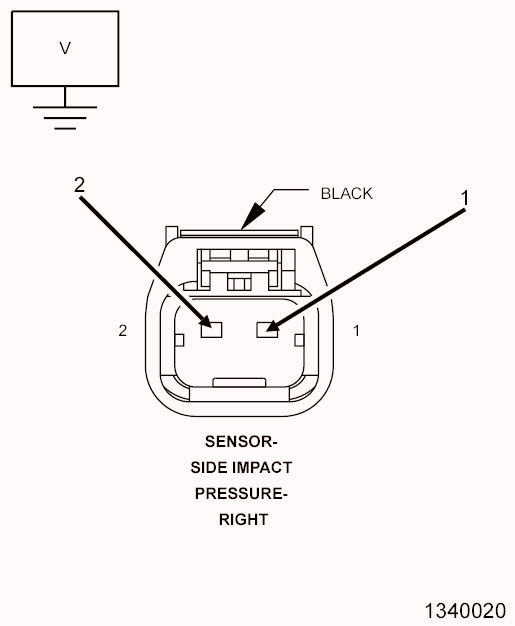

  2. CHECK THE (R140, R160) RIGHT SIDE IMPACT PRESSURE SENSOR CIRCUITS FOR A SHORT TO VOLTAGE
    Fig 1: Checking Right Side Impact Pressure Sensor Circuit
    GC0089863Courtesy of CHRYSLER LLC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the Right Side Impact Pressure Sensor harness connector.
    2. Disconnect the ORC harness connectors.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    3. Measure the voltage of the (R140) Right Side Impact Pressure Sensor Signal circuit at the Right Side Impact Pressure Sensor harness connector.
    4. Measure the voltage of the (R160) Right Side Impact Pressure Sensor Ground circuit at the Right Side Impact Pressure Sensor harness connector.

      Is there any voltage present?

      Yes

      • Repair the (R140, R160) Right Side Impact Pressure Sensor circuits for a short to voltage.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  3.

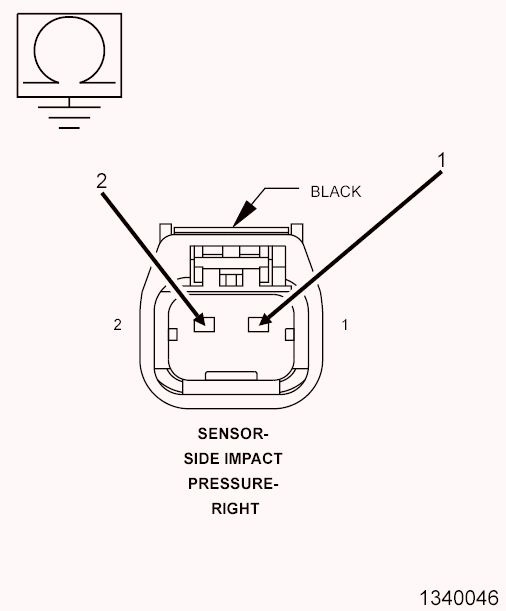

  3. CHECK THE (R140, R1160) RIGHT SIDE IMPACT PRESSURE SENSOR CIRCUITS FOR A SHORT TO GROUND
    Fig 2: Checking Right Side Impact Pressure Sensor Circuit
    GC0089864Courtesy of CHRYSLER LLC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Measure the resistance between ground and the (R140) Right Side Impact Pressure Sensor Signal circuit at the Right Side Impact Pressure Sensor harness connector.
    2. Measure the resistance between ground and the (R160) Right Side Impact Pressure Sensor Ground circuit at the Right Side Impact Pressure Sensor harness connector.

      Is the resistance below 100K Ohms?

      Yes

      • Repair the (R140, R160) Right Side Impact Pressure Sensor circuits for a short to ground.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  4.

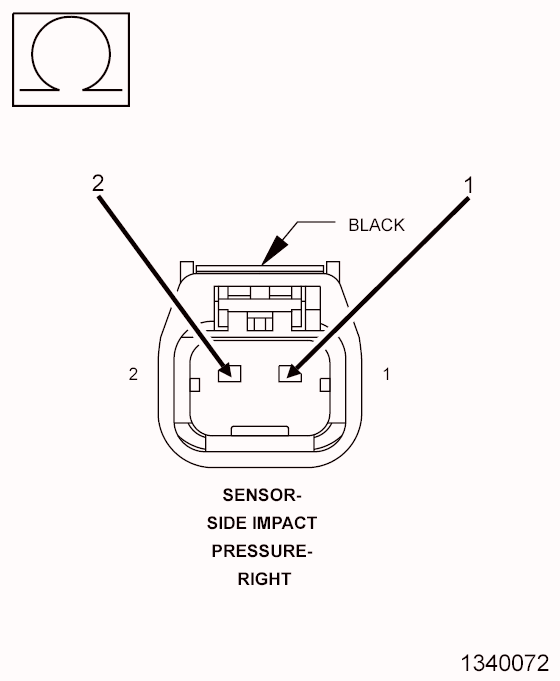

  4. CHECK THE (R140, R160) RIGHT SIDE IMPACT PRESSURE SENSOR CIRCUITS FOR A SHORT TOGETHER
    Fig 3: Checking Right Side Impact Pressure Sensor Circuit
    GC0089865Courtesy of CHRYSLER LLC
    1. Measure the resistance between the (R140) Right Side Impact Pressure Sensor Signal circuit and (R160) Right Side Impact Pressure Sensor Ground circuit at the Right Side Impact Pressure Sensor harness connector.

      Is the resistance below 100K Ohms?

      Yes

      • Repair the (R140, R160) Right Side Impact Pressure Sensor circuits shorted together.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  5.

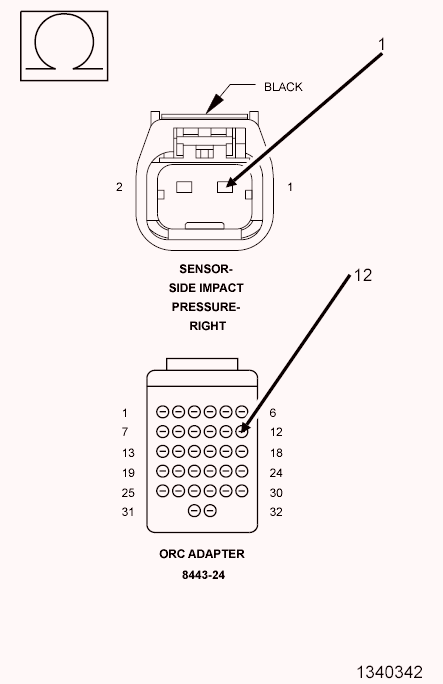

  5. CHECK THE (R140) RIGHT SIDE IMPACT PRESSURE SENSOR SIGNAL CIRCUIT FOR AN OPEN OR HIGH RESISTANCE
    Fig 4: Checking Right Side Impact Pressure Sensor Signal Circuit
    GC0089866Courtesy of CHRYSLER LLC
    1. Connect the SRS Load Tool Adaptor (special tool #8443-24, 32-Way Adapter) to the ORC C1 harness connector.
    2. Measure the resistance of the (R140) Right Side Impact Pressure Sensor Signal circuit between the Right Side Impact Pressure Sensor harness connector cavity 1 and the SRS Load Tool Adaptor (special tool #8443-24, 32-Way Adapter) cavity 12.

      Is the resistance below 1 Ohm?

      Yes

      • Go To  6.

      No

      • Repair the (R140) Right Side Impact Pressure Sensor Signal circuit for an open or high resistance.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

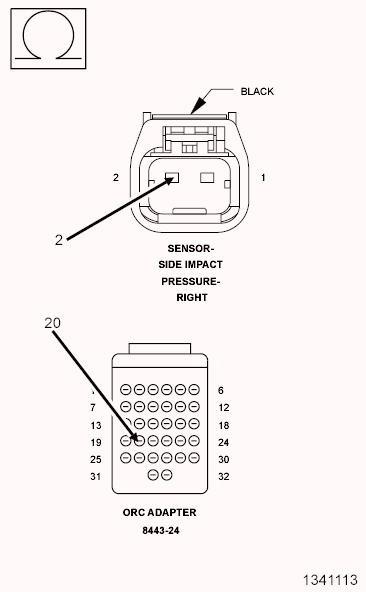

  6. CHECK THE (R160) RIGHT SIDE IMPACT PRESSURE SENSOR GROUND CIRCUIT FOR AN OPEN OR HIGH RESISTANCE
    Fig 5: Checking Right Side Impact Pressure Sensor Ground Circuit
    GC0089867Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (R160) Right Side Impact Pressure Sensor Ground circuit between the Right Side Impact Pressure Sensor harness connector cavity 2 and the SRS Load Tool Adaptor (special tool #8443-24, 32-Way Adapter) cavity 20.

      Is the resistance below 1 Ohm?

      Yes

      • Go To  7.

      No

      • Repair the (R160) Right Side Impact Pressure Sensor ground circuit for an open or high resistance.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  7. CHECK OPERATION OF THE RIGHT SIDE IMPACT PRESSURE SENSOR
    1. Replace the Right Side Impact Pressure Sensor.
    2. Reconnect the vehicle body harness to the Right Side Impact Pressure Sensor.
    3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    4. Connect the scan tool to the Data Link Connector - use the most current software available.
    5. Use the scan tool and erase the stored codes in all airbag system modules.
    6. Turn the ignition OFF, and wait 15 seconds before turning the ignition ON.
    7. Wait one minute, and read active codes and if there are none present read the stored codes.

      Did the active U11B0-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 4 - DTC return?

      Yes

        WARNING:

        Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

      • WARNING:

        If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

      • Replace the Occupant Restraint Controller (ORC) in accordance with Service Instructions.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Repair is complete.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
