Diagnostic Test

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. VERIFY ACTIVE DTC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    NOTE:

    Using the wiring diagram/schematic as a guide check all related splices and connectors for signs of water intrusion, corrosion, pushed out or bent terminals, and correct pin tension.

    NOTE:

    If after the harness inspection it appears the impact sensor connector is only seated halfway. Reseat the harness connector into the impact sensor and lock the tab. Follow the instructions below checking for active codes.

    WARNING:

    Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    NOTE:

    Make sure the battery is fully charged.

    1. Turn the ignition on.
    2. With the scan tool, read ORC DTCs.

      Does the scan tool display active B0096-49-RIGHT SIDE ACCELERATION SENSOR 1 - INTERNAL ELECTRONIC FAILURE, U0175-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 1, U0176-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 2, U11B0-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 4 - DTC?

      Yes

      • Check for all other internal and lost communication codes indicated in the right side impact sensor daisy chain wiring, starting with DTC B0096-49-RIGHT SIDE ACCELERATION SENSOR 1 - INTERNAL ELECTRONIC FAILURE, then DTC U0175-00-LOST COMMUNICATION W/RIGHT SIDE SATELLITE ACCELERATION SENSOR 1. Refer to Diagnosis and Testing . Then Go To  2.

      No

  2. CHECK THE (R14, R16) RIGHT SIDE IMPACT SENSOR 1 CIRCUITS FOR A SHORT TO VOLTAGE

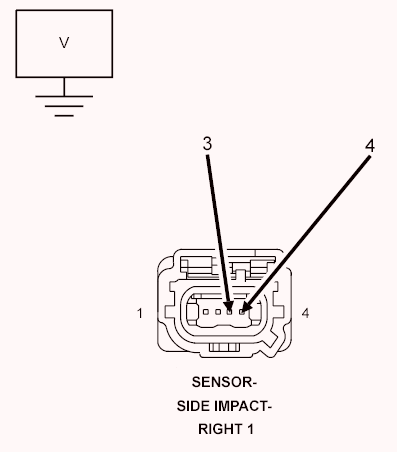

    Fig 1: Checking Right Side Impact Sensor 1 Circuit
    GC0089848Courtesy of CHRYSLER LLC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Disconnect the Right Side Impact Sensor 1 harness connector.
    2. Disconnect the ORC harness connectors.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    3. Measure the voltage of the (R14) Right Side Impact Sensor 1 Signal circuit cavity 4 and (R16) Right Side Impact Sensor 1 Ground circuit cavity 3 at the Right Side Impact Sensor 1 harness connector.

      Is there any voltage present?

      Yes

        WARNING:

        Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

      • Repair the (R14, R16) Right Side Impact Sensor 1 circuits for a short to voltage.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  3.
  3. CHECK THE (R14, R16) RIGHT SIDE IMPACT SENSOR 1 CIRCUITS FOR A SHORT TO GROUND

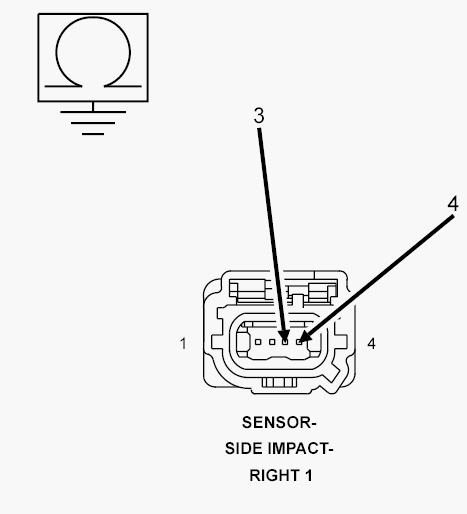

    Fig 2: Checking Right Side Impact Sensor 1 Circuit
    GC0089849Courtesy of CHRYSLER LLC
    WARNING:

    Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    1. Measure the resistance between ground and the (R16) Right Side Impact Sensor 1 Ground circuit at the Right Side Impact Sensor 1 harness connector cavity 3.
    2. Measure the resistance between ground and the (R14) Right Side Impact Sensor 1 Signal circuit between at the Right Side Impact Sensor 1 harness connector cavity 4.

      Is the resistance below 100K Ohms?

      Yes

      • Repair the (R14, R16) Right Side Impact Sensor 1 circuits for a short to ground.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  4.
  4. CHECK THE (R14, R16) RIGHT SIDE IMPACT SENSOR 1 CIRCUITS FOR A SHORT TOGETHER

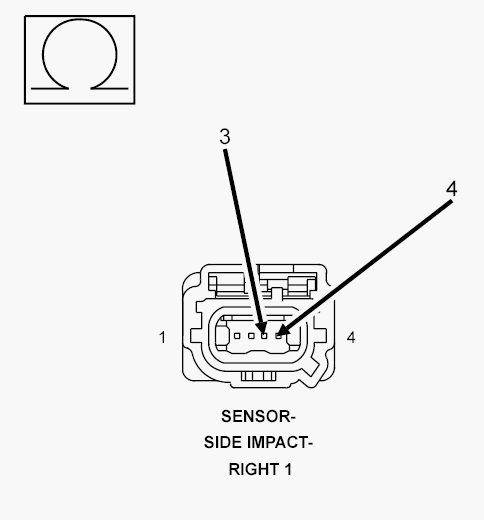

    Fig 3: Checking Right Side Impact Sensor 1 Circuit
    GC0089850Courtesy of CHRYSLER LLC
    1. Measure the resistance between the (R14) Right Side Impact Sensor 1 Signal and (R16) Right Side Impact Sensor 1 Ground circuits at the Right Side Impact Sensor 1 harness connector cavity 3 and 4.

      Is the resistance below 100K Ohms?

      Yes

      • Repair the (R14, R16) Right Side Impact Sensor 1 circuits shorted together.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Go To  5.
  5. CHECK THE (R16) RIGHT SIDE IMPACT SENSOR 1 GROUND CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

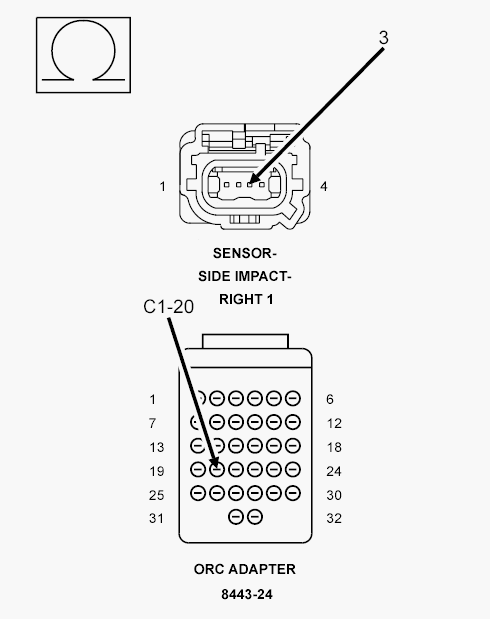

    Fig 4: Checking Right Side Impact Sensor 1 Ground Circuit For Open Or High Resistance
    GC0137214Courtesy of CHRYSLER LLC
    1. Connect the SRS Load Tool Adaptor (special tool #8443-24, 32-Way Adapter) to the ORC C1 harness connector.
    2. Measure the resistance of the (R16) Right Side Impact Sensor 1 Ground circuit between the Right Side Impact Sensor 1 harness connector cavity 3 and the SRS Load Tool Adaptor (special tool #8443-24, 32-Way Adapter) cavity 20.

      Is the resistance below 1 Ohm?

      Yes

      • Go To  6.

      No

      • Repair the (R16) Right Side Impact Sensor 1 Ground circuit for an open or high resistance.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  6. CHECK THE (R14) RIGHT SIDE IMPACT SENSOR 1 CIRCUIT FOR AN OPEN OR HIGH RESISTANCE

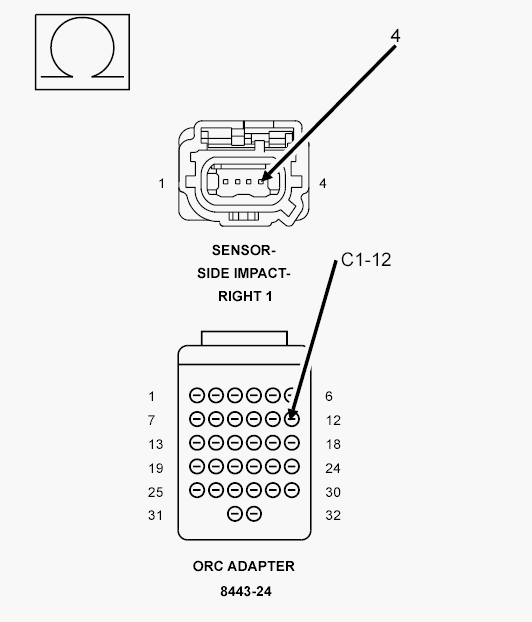

    Fig 5: Checking Right Side Impact Sensor 1 Circuit For Open Or High Resistance
    GC0137215Courtesy of CHRYSLER LLC
    1. Measure the resistance of the (R14) Right Side Impact Sensor 1 Signal circuit between the Right Side Impact Sensor 1 harness connector cavity 4 and the SRS Load Tool Adaptor (special tool #8443-24, 32-Way Adapter) cavity 12.

      Is the resistance below 1 Ohm?

      Yes

      • Go To  7.

      No

      • Repair the (R14) Right Side Impact Sensor 1 Signal circuit for an open or high resistance.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
  7. CHECK OPERATION OF THE RIGHT SIDE IMPACT SENSOR 1
    1. Replace the Right Side Impact Sensor 1.
    2. Reconnect the vehicle body harness to the impact sensor.
    3. Remove any special tools or jumper wires and reconnect all previously disconnected components - except the Battery.
      WARNING:

      Turn the ignition on, then reconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

    4. Connect the scan tool to the Data Link Connector - use the most current software available.
    5. Use the scan tool and erase the stored codes in all airbag system modules.
    6. Turn the ignition OFF, and wait 15 seconds before turning the ignition ON.
    7. Wait one minute, and read active codes and if there are none present read the stored codes.

      Does the scan tool display active U0175-00-LOST COMMUNICATION W/ RIGHT SIDE SATELLITE SENSOR 1 - DTC?

      Yes

        WARNING:

        Turn the ignition off, disconnect the 12-volt battery and wait two minutes before proceeding. Failure to follow these instructions may result in possible serious or fatal injury.

      • WARNING:

        If the Occupant Restraint Controller (ORC) is dropped at any time, it must be replaced. Failure to follow these instructions may result in possible serious or fatal injury.

      • Replace the ORC in accordance with Service Instructions.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .

      No

      • Repair is complete.
      • Perform the RESTRAINTS SYSTEM VERIFICATION TEST. Refer to Standard Procedure .
