B007F-2B-Passenger SEATBELT Retractor PRETENSIONER Deployment Control - Wires Shorted Together: Notes

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

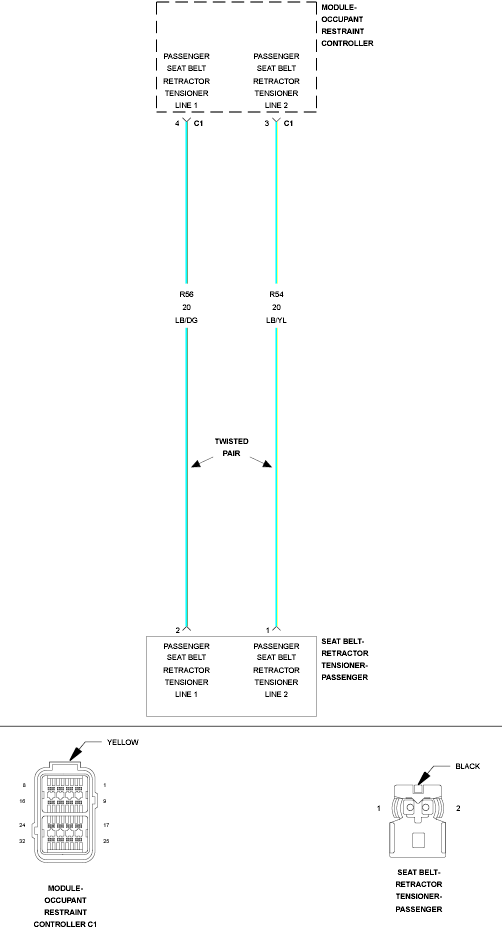

Fig 1: Passenger Seat Belt Retractor Tensioner Circuit Schematic

Courtesy of CHRYSLER LLC

For a complete wiring diagram, refer to Wiring Information .
