Standard Procedure - Vehicle Towing: Notes

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

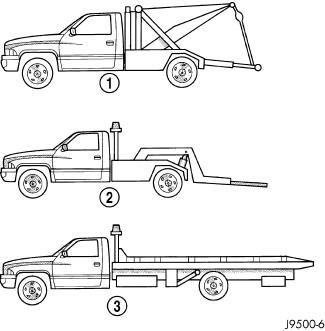

Fig 1: Tow Vehicles With Approved Equipment
GC0091736Courtesy of CHRYSLER LLC
1 - SLING TYPE
2 - WHEEL LIFT
3 - FLAT BED

A vehicle equipped with SAE approved sling-type towing equipment can be used to tow all vehicles. When towing a 4WD vehicle using a wheel-lift towing device, use tow dollies under the opposite end of the vehicle. A vehicle with flat-bed device can also be used to transport a disabled vehicle.

A wooden crossbeam may be required for proper connection when using the sling-type, front-end towing method.
