Floor Jack

WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

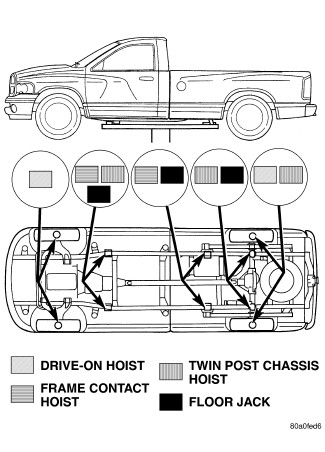

Fig 1: Vehicle Lifting Locations

Courtesy of CHRYSLER LLC

When properly positioned, a floor jack can be used to lift a vehicle. Support the vehicle in the raised position with jack stands at the front and rear ends of the frame rails.

CAUTION:

Do not lift vehicle with a floor jack positioned under:

An axle tube.
A body side sill.
A steering linkage component.
A drive shaft.
The engine or transmission oil pan.
The fuel tank.
A front suspension arm.

NOTE:

Use the correct rear frame rail lifting locations only.
