Cover, Oil Pump: Installation: Installation
WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.

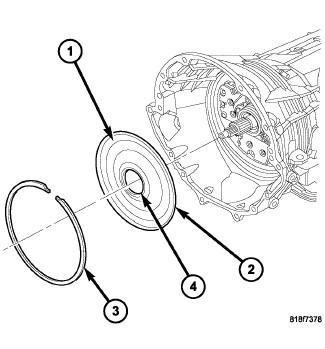

| 1 - FRONT COVER |
| 2 - O-RING |
| 3 - SNAP RING |
| 4 - FRONT COVER SEAL |
NOTE:
To avoid contamination and garter spring dislodgement, do not handle the front cover seal (4) when positioning the front cover into the transmission case.
- Position a new front cover (1) into the transmission case.

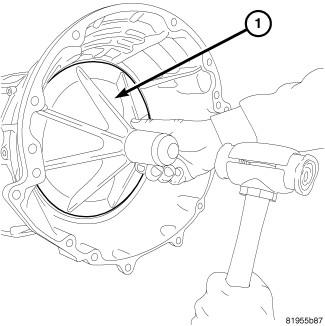

1 - Front Cover installation Tool 9955 - Using the front cover installation tool (special tool #9955, Installer, Front Cover) (1) and a dead-blow mallet, install the front cover into transmission case.
1 - FRONT COVER 2 - O-RING 3 - SNAP RING 4 - FRONT COVER SEAL - Install the snap ring (3) into the transmission case.
- Apply RTV silicone to the oil pan and install the transmission oil pan.
- Tighten the bolts to 12 N.m (105 in. lbs.).
