Cable, Shift: Removal: Removal

WARNING: This page is about a different car, the 2014 RAM 1500. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Gearshift Cable & Pin
GC0152021Courtesy of CHRYSLER GROUP, LLC
  1. Shift transmission into PARK.
  2. Raise vehicle.
  3. Disconnect gearshift cable (1) from transmission manual valve lever by fully depressing pin (2) until it locks into the release position. Remove cable end by moving upward.

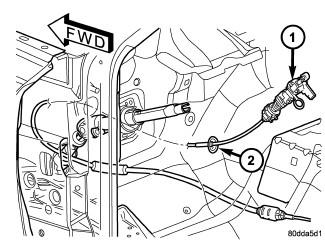

    Fig 2: Gearshift Cable AT Dash Panel
    GC0083636Courtesy of CHRYSLER GROUP, LLC
  4. Lower the vehicle.
  5. Remove the dash panel insulation pad as necessary to access the gearshift cable grommet (2).
  6. Remove grommet (2) from the dash panel.

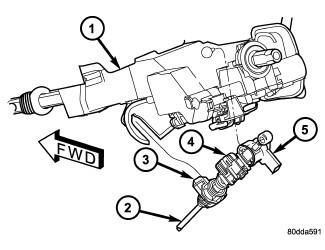

    Fig 3: BTSI Mechanism System Components
    GC0083637Courtesy of CHRYSLER GROUP, LLC
  7. Remove any steering column (1) trim necessary to access the gearshift cable (2) and BTSI mechanism.
  8. Disconnect the BTSI wiring connector (5).
  9. Disconnect cable at lower column bracket and shift lever pin and pull the cable through the dash panel opening into the vehicle.
  10. Remove gearshift cable (2) from vehicle.
