LEVER, Transfer Case: Adjustments: Adjustments
WARNING: This page is about a different car, the 2011 RAM Pickup and 2011 RAM Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.

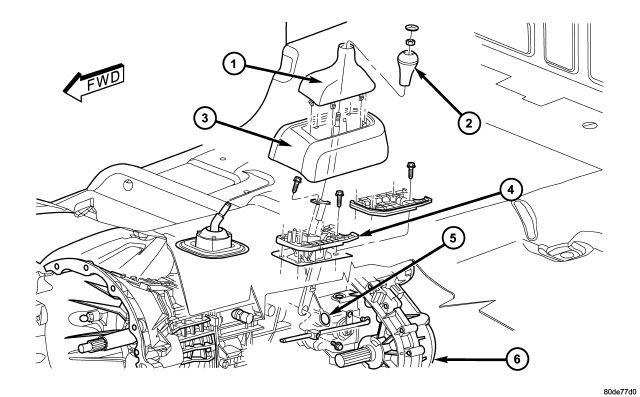

| 1 - SHIFTER BOOT | 4 - SHIFTER MECHANISM |
| 2 - SHIFTER KNOB | 5 - ALIGNMENT PIN |
| 3 - SHIFTER CONSOLE | 6 - TRANSFER CASE |
- Move shift lever into 2H position.
- Raise vehicle.
- Loosen shift rod lock bolt at trunnion.
- Check shift rod fit in trunnion. Be sure rod does not bind in trunnion. Lubricate the shift rod and trunnion if necessary.
- Verify that transfer case shift lever is in 2H detent position. The 2H detent position on the transfer case shift arm is the second position from full forward.
- Align the adjustment locating hole on the lower shifter lever with the adjustment channel on the shifter bracket assembly. Refer to Fig 1.
- Insert an appropriately sized pin through into the adjustment channel and through the locating hole to hold the shifter in the correct position.
- Tighten shift rod lock bolt to 10 N.m (90 in. lbs.) torque.
- Remove the locating pin from the adjustment channel and locating hole.
- Check shift linkage operation. Be sure transfer case shifts into and operates properly in all ranges.
