Standard Procedure - Fluid Drain And Refill

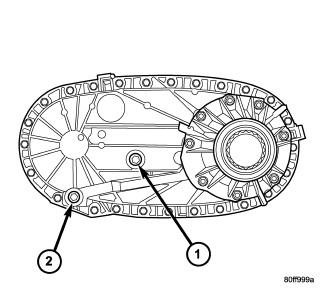

Fig 1: Drain And Fill Locations

Courtesy of CHRYSLER LLC

The fill (1) and drain (2) plugs are both in the rear case. Refer to Fig 1.

1. Raise vehicle.
2. Position drain pan under transfer case.
   NOTE:

   It may be necessary to remove the exhaust y-pipe at the exhaust manifold to properly access the fill and drain plugs. Lowering the exhaust will allow the plugs to be accessed for torquing during installation. Refer to PIPE, Exhaust , Removal .

3. Remove drain and fill plugs and drain lubricant completely.
4. Install drain plug. Tighten plug to 20-34 N.m (15-25 ft. lbs.).
5. Remove drain pan.
6. Fill transfer case to bottom edge of fill plug opening with Mopar® ATF +4, Automatic Transmission fluid.
7. Install and tighten fill plug to 20-34 N.m (15-25 ft. lbs.).
8. Install the exhaust y-pipe to the exhaust manifold, if removed. Refer to PIPE, Exhaust , Installation .
9. Wipe any excess fluid that may have spilled onto the exhaust.
10. Lower vehicle.
